Beskrivning
Mafell Sticksåg P1cc Precision Jig Saw MaxiMAX 230 V
Mafell Jig Saw P1 cc MaxiMAX case in the T-MAX
Den mytomspunna sticksågen från Mafell som det går såga rakt med på riktigt utan att bladet viker sig. Med "plogbladet går det köra snirkliligare krumelurer som t o m Skalman skulle bli imponerad av.
Order number: 917103
Delivery specification
- 3 jig saw blades CUnex W1, W2, W+P2
- 1 Parallel guide fence P1-PA; Ref. No. 205448
- 1 base plate P1-GP; Ref. No. 204350
- 1 hose connector P1-AS; Ref. No. 203917
- 1 chip deflector P1-SA; Ref. No. 204353
- 1 splinter guard P1-SS; Ref. No. 205447
- 1 glider P1-G; Ref. No. 205464
- 1 Mains cable 4 m (13.1 ft)
- Transport and storage box T-MAX
Technical data
Stroke height 26 mm
No-load number of strokes 800-3000 1/min
Nominal power input 900 W
Weight 2,5 kg
Universal motor 230 V / 50 Hz
Description
Owing to its ergonomic design, with low center of pressure and soft pads, the P1 cc is comfortable to hold in every situation.
Sophisticated self-extraction and a clever integrated blower keep the work surface free from chips, even if a dust extractor is not connected. The workplace therefore remains clean at all times.
The P1 cc offers continuously variable speeds in the range 800 to 3000 strokes/min., so that the output can be adjusted exactly to suit the material.
The sole plate, with integrated vacuum channel, is as sturdy as it looks. By way of a quick-release mechanism, it remains reliably fastened to the saw at an exact right angle.

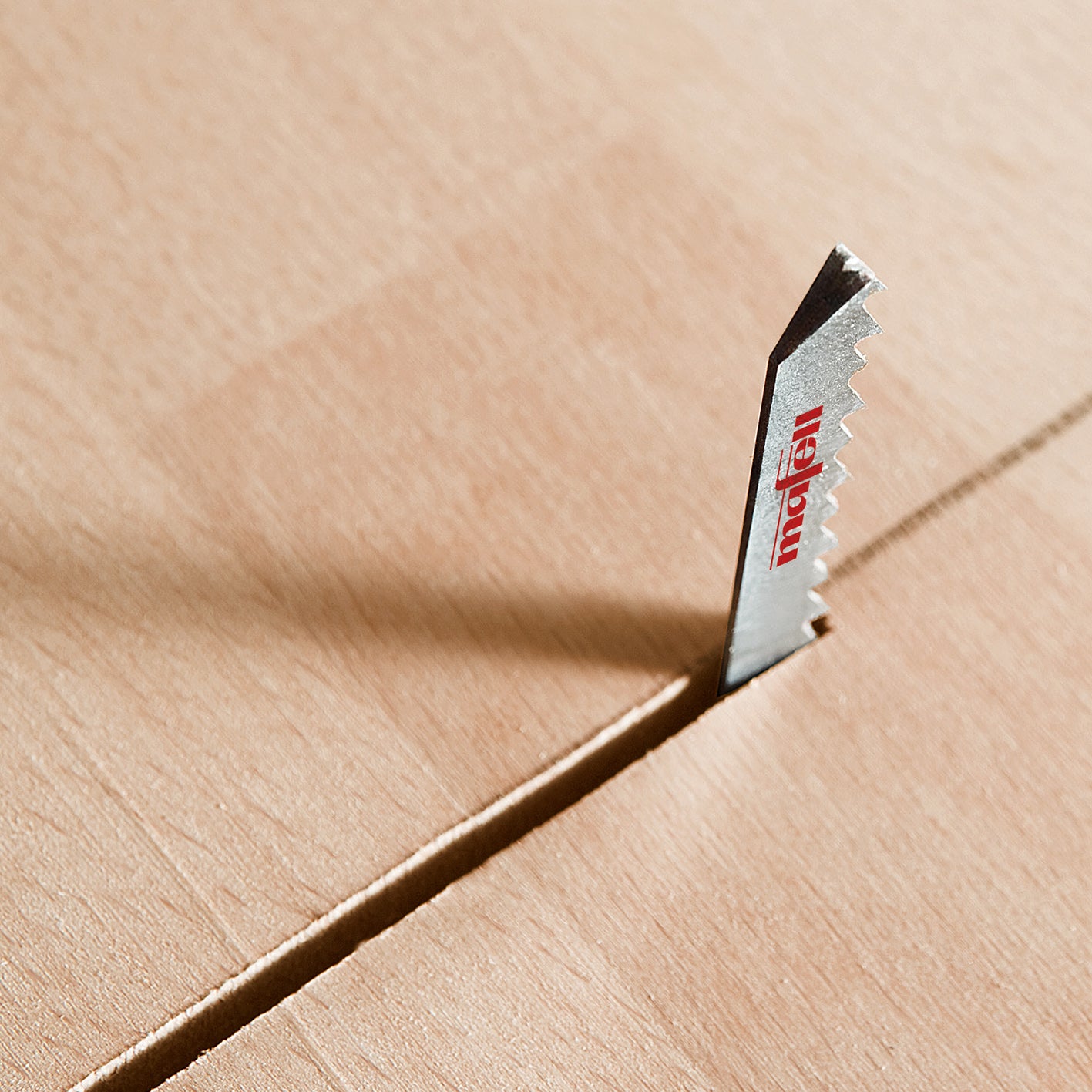

Its intelligent accessories give the P1 cc unprecedented versatility. The innovative design of the new MAFELL precision sawblade CUnex W1, in particular, facilitates extremely precise sawing.
Applications

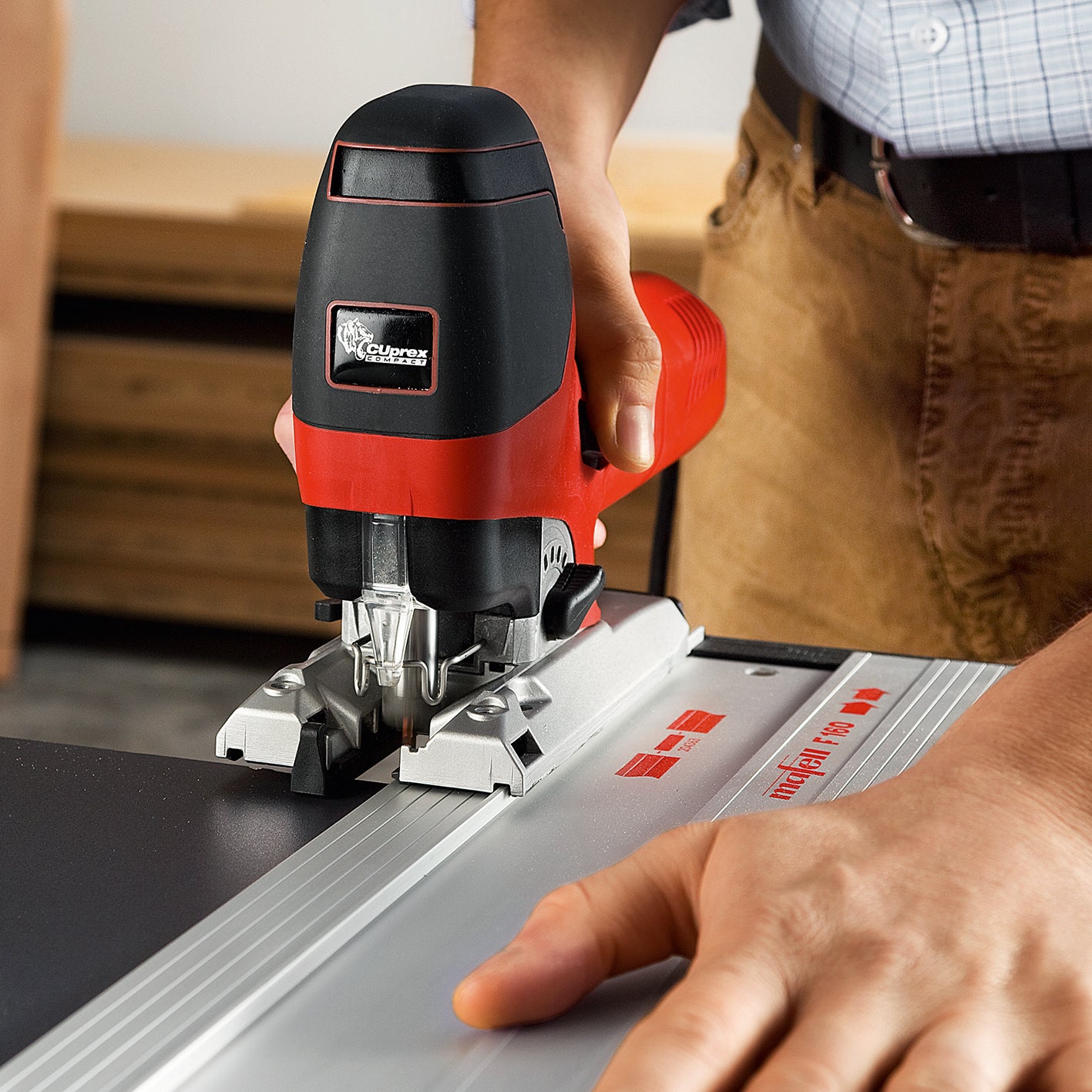

Straight cuts with guide rail and CUnex
Guided circle cutting with P1-PA parallel fence and CUnex
Recesses
Bevel cuts up to 45°
Compatible materials depend on sawblade; see special accessories/toolsard materials
Advantages
The iF Product Design Award 2011 for the Jig Saw P1 cc.

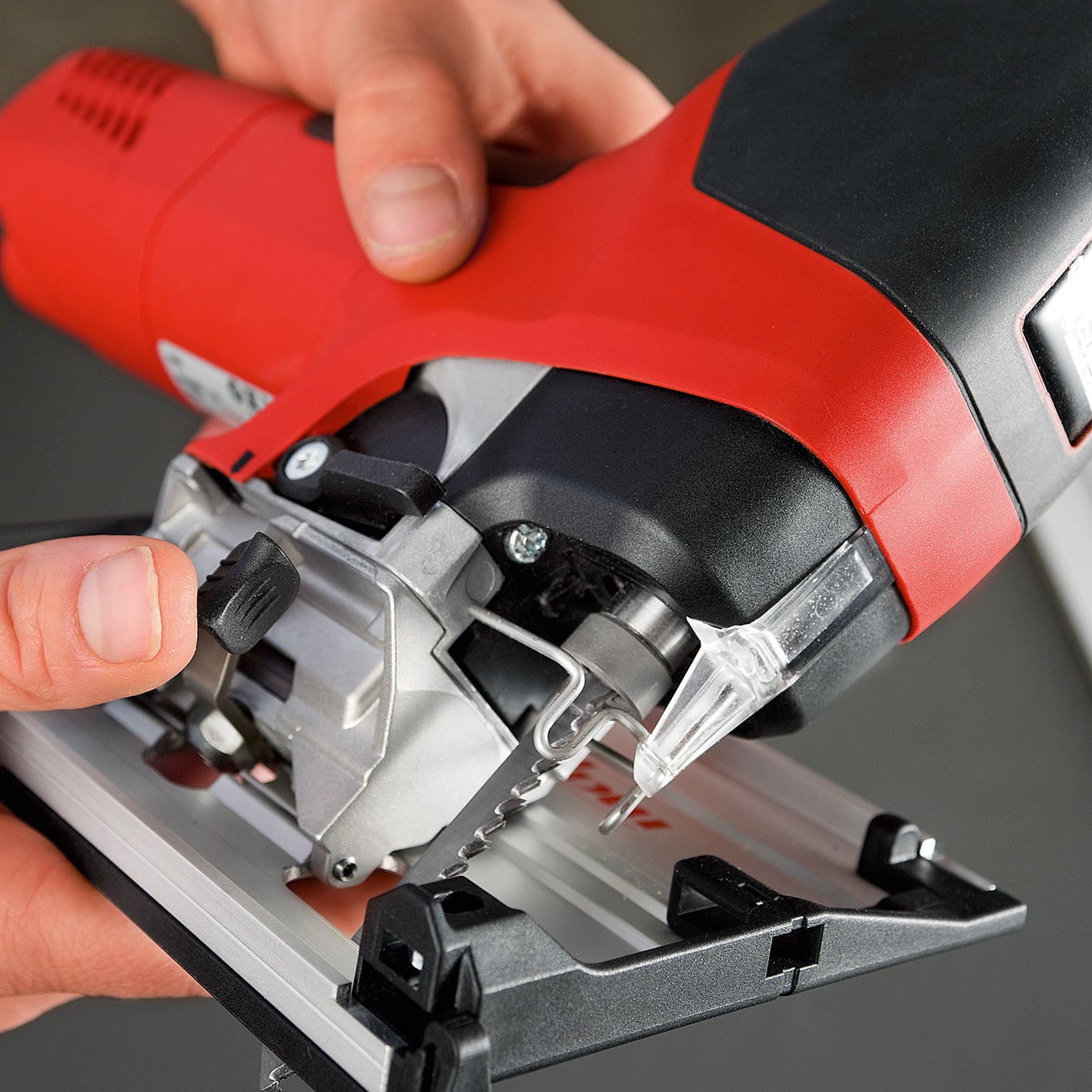

To change the sawblade, simply release the locking lever. With just one hand, effortlessly remove the blade and insert the replacement.
The high-performance CUprex compact motor delivers consistently high speeds, even when executing long cuts.
The vacuum channel integrated in the sole plate guarantees outstanding dust extraction directly alongside the sawblade.
