Mafell Skruvdragare ASB 18 iM i T-MAX

Mafell

6.699 SEK

Mafell Skruvdragare ASB 18 iM i T-MAX

Cordless Impact Drill Driver ASB 18 in the T-MAX

Batteridriven Mafell Skruvdragare ASB 18 iM i T-MAX (systainer)



Order number: 91C901

Delivery specification

  • 1 Quick-release chuck A-SBF 13; Ref. No. 206772
  • 1 Quick-release bit holder A-SBH; Ref. No. 206766
  • 1 Belt clip
  • 1 Auxiliary handle
  • 1 Battery PowerTanks 18 M 72 LiHD; Ref. No. 094500
  • 1 Battery PowerTanks 18 M 99, 18V, 99 Wh (LiHD); Ref. No. 094503
  • 1 Battery-PowerStation APS M; Ref. No. 094492
  • Transport and storage box T-MAX

Technical data

Collar diameter 43 mm
Chuck capacity 13 mm
Max. drilling diameter in wood / steel 68 / 13 mm
Torque soft / hard 65 / 130 Nm
Impulse torque (soft) 65 Nm
1st speed range 0 - 560 1/min
2nd speed range 0 - 1960 1/min
Weight (including battery 1,9 kg
Dimensions (L x W x H) 163 x 79 x 201 mm
Nominal voltage 18 V
Impact rate 38000 1/min
Torque settings 10 + 1
Vibration (measured in metal/reinforced concrete) < 2,5/15,5 m/s^2
Noise level dB(A) 92
Sound power level (LwA) dB(A) 103
Weight (incl. Battery PowerTanks 18 M 72 LiHD) 1,9 kg



Description

  • To overcome the toughest challenges, we have given the new-generation A 18 and ASB 18 an especially rugged specification and extra power.

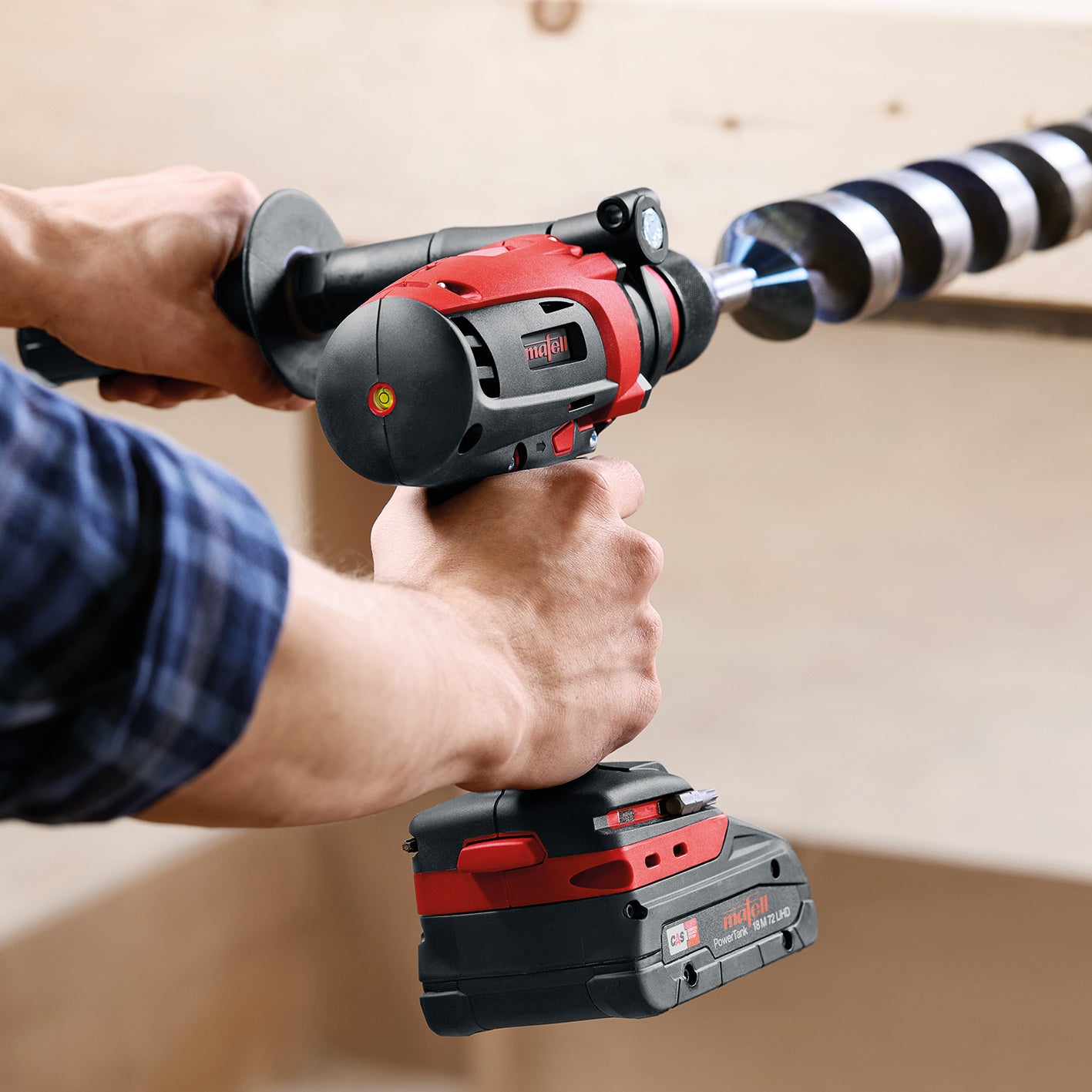

  • Its impact drill function makes the ASB 18 a genuine all-rounder.
  • The upgraded PowerTanks for our cordless tools feature advanced processor-controlled battery technology. A key advantage lies in continuous monitoring of all the relevant parameters of the individual battery cells, including temperature and charge.

Applications

  • Drilling
  • Driving
  • Percussion drilling

Advantages

  • In difficult situations the impulse mode delivers a critical boost, e.g. for releasing immovable screws or controlling the first few turns when drilling into smooth surfaces.
  • With 4 magnetic bit holders on both sides of the battery holder, the desired bit is always to hand.
  • Bright LED lamps with an afterglow effect illuminate a large working area.
  • Bits and push-fit accessories are inserted directly in the ¼” drive.
  • 43 mm diameter clamping collar fits all MAFELL BST drilling stations.
