Mafell Skruvdragare A 18 i T-MAX
Cordless Drill Driver A 18 in the T-MAX
Order number: 91C801
Delivery specification
- 1 Quick-release chuck A-SBF 13; Ref. No. 206772
- 1 Quick-release bit holder A-SBH; Ref. No. 206766
- 1 Belt clip
- 1 Auxiliary handle
- 1 Battery PowerTanks 18 M 72 LiHD; Ref. No. 094500
- 1 Battery PowerTanks 18 M 99, 18V, 99 Wh (LiHD); Ref. No. 094503
- 1 Battery-PowerStation APS M; Ref. No. 094492
- Transport and storage box T-MAX
Technical data
| Collar diameter | 43 mm |
| Chuck capacity | 13 mm |
| Max. drilling diameter in wood / steel | 68 / 13 mm |
| Torque soft / hard | 65 / 130 Nm |
| Impulse torque (soft) | 65 Nm |
| 1st speed range | 0 - 560 1/min |
| 2nd speed range | 0 - 1960 1/min |
| Dimensions (L x W x H) | 145 x 79 x 201 mm |
| Nominal voltage | 18 V |
| Torque settings | 10 + 1 |
| Vibration (measured in metal/reinforced concrete) < | 2,5/- m/s^2 |
| Noise level dB(A) | 73 |
| Sound power level (LwA) dB(A) | 88 |
| Weight (incl. Battery PowerTanks 18 M 72 LiHD) | 1,8 kg |
Description
- To overcome the toughest challenges, we have given the new-generation A 18 and ASB 18 an especially rugged specification and extra power.
- Its impact drill function makes the ASB 18 a genuine all-rounder.
- The upgraded PowerTanks for our cordless tools feature advanced processor-controlled battery technology. A key advantage lies in continuous monitoring of all the relevant parameters of the individual battery cells, including temperature and charge.
Applications

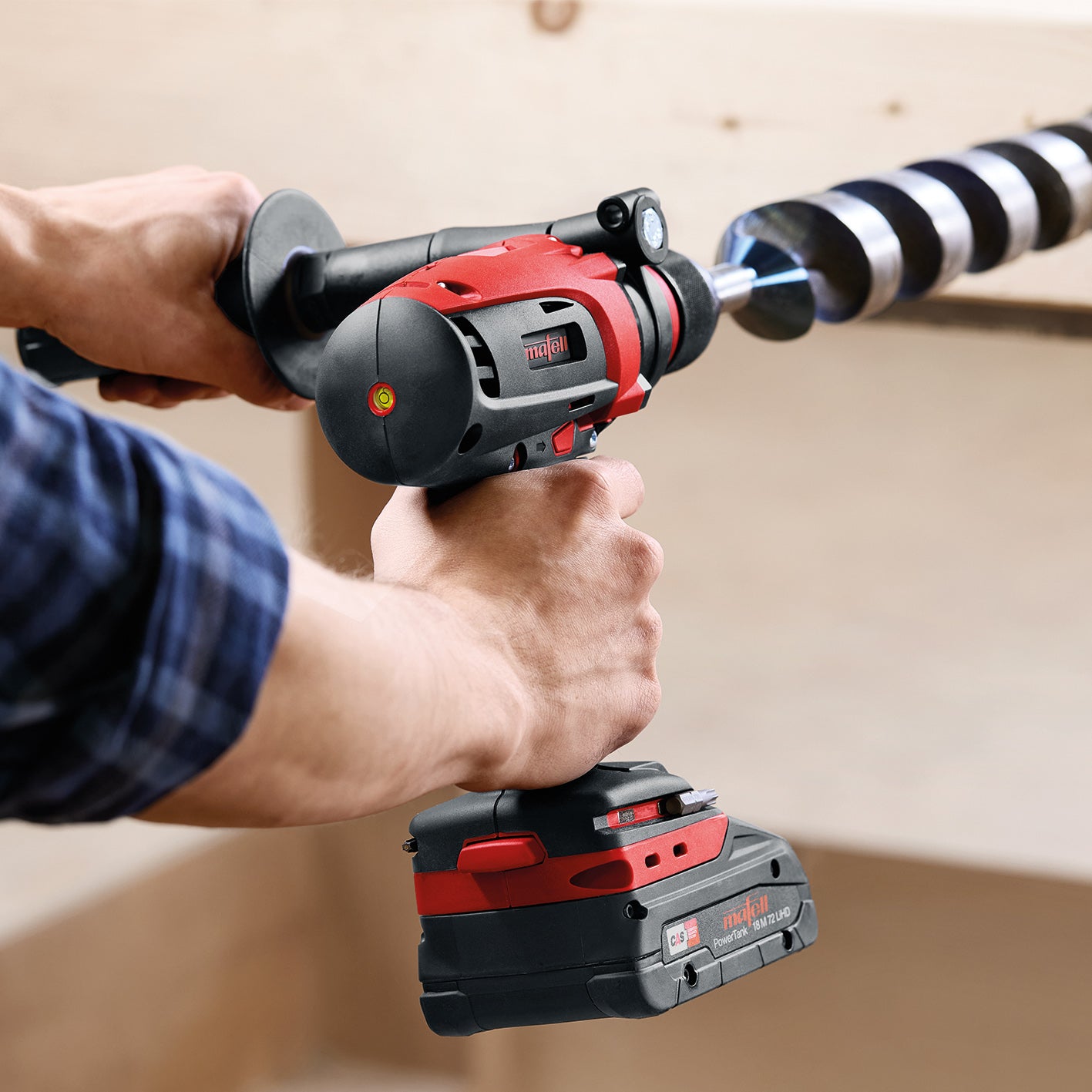

- Drilling
- Driving
- Ideal for construction sites
Advantages
- In difficult situations the impulse mode delivers a critical boost, e.g. for releasing immovable screws or controlling the first few turns when drilling into smooth surfaces.
- With 4 magnetic bit holders on both sides of the battery holder, the desired bit is always to hand.
- Bright LED lamps with an afterglow effect illuminate a large working area.
- Bits and push-fit accessories are inserted directly in the ¼” drive.
- 43 mm diameter clamping collar fits all MAFELL BST drilling stations.
