Beskrivning

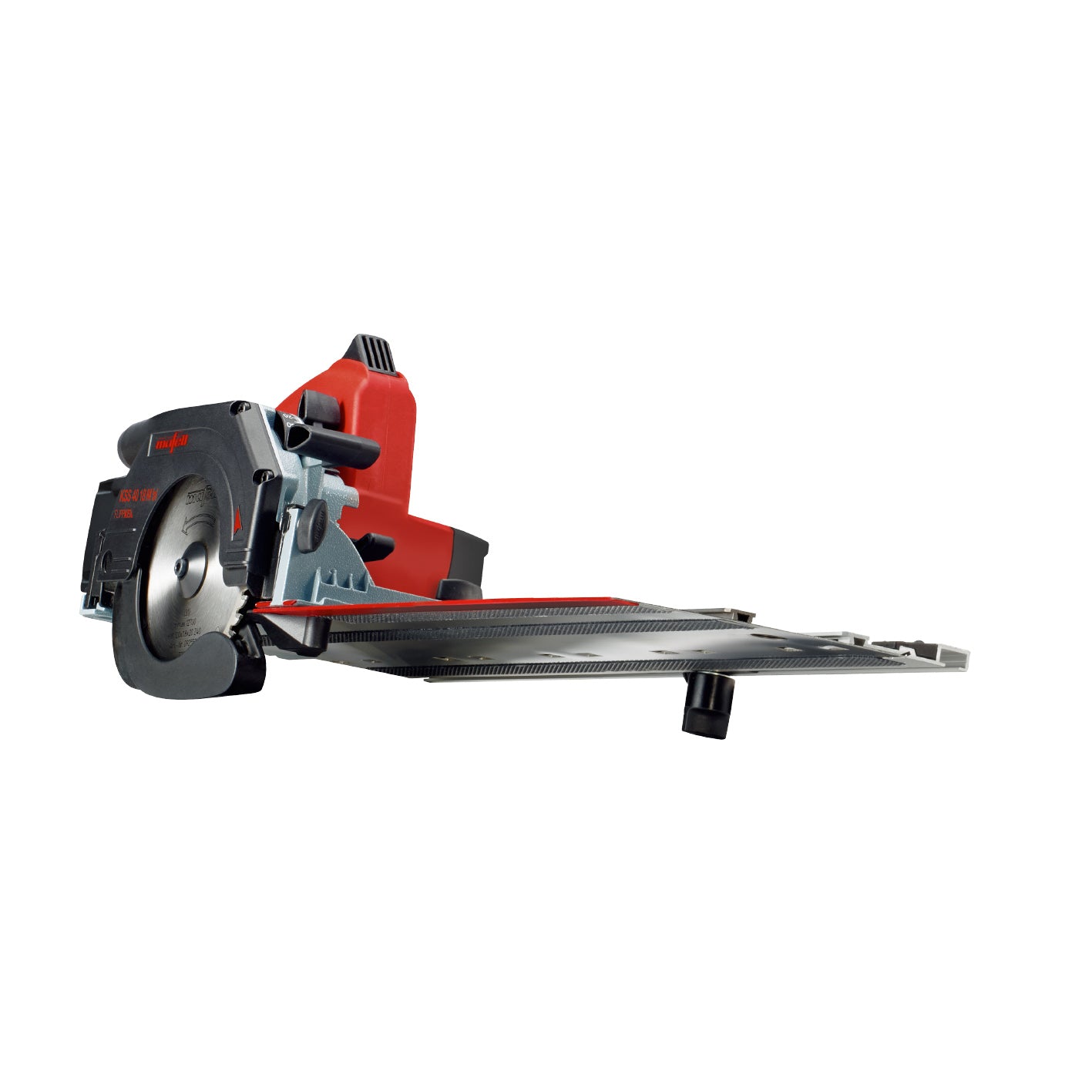

Mafell Kapsågsystem KSS 40 18M bl i T-MAX
Cordless Cross-Cutting System KSS 40 18M bl in the T-MAX
Batterdriven Kapsågsystem KSS 40 18M bl i T-MAX med laddare och 2st 18 M 99 batterier i T-MAX (systainer)
Order number: 91D501

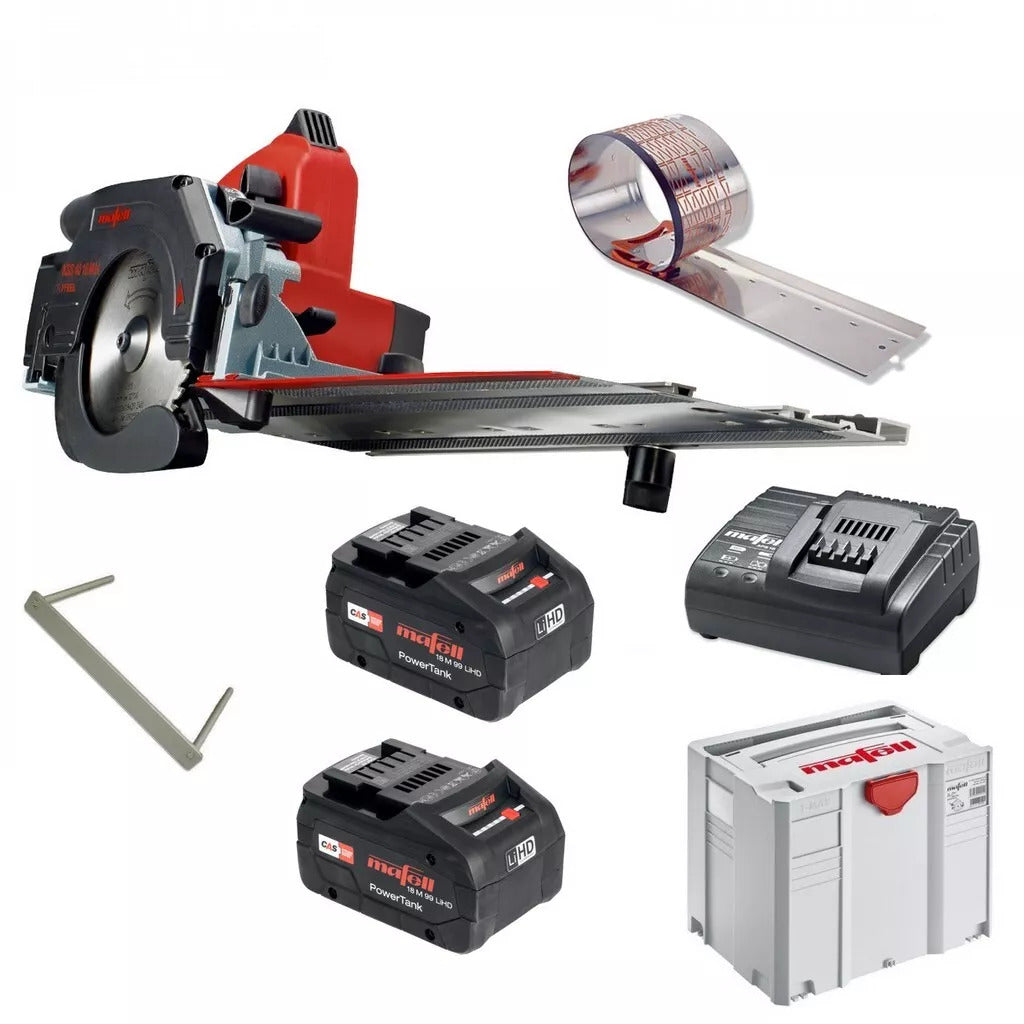

Delivery specification
- 1 TCT saw blade 120 x 1.2/1.8 x 20 mm (4 3/4 in.)/ AT, 24 teeth; Ref. No. 092558
- 1 Guide track S, max. cutting length 292 mm (15 3/4 in.); Ref. No. 208169
- 1 Parallel guide fence; Ref. No. 203180
- 1 Hose connector; Ref. No. 203782
- 1 Dust bag; Ref. No. 206787
- 1 Allen key 4 mm; Ref. No. 093074
- 1 Flexi-Guide FX 140, 1.4 m (4.6 ft) with splinter guard; Ref. No. 204372
- 1 Battery-PowerStation APS 18 M; Ref. No. 094492
- 2 Battery PowerTanks 18 M 99, 18V, 99 Wh (LiHD); Ref. No. 094503
- 2 Clamping claws; Ref. No. 203773

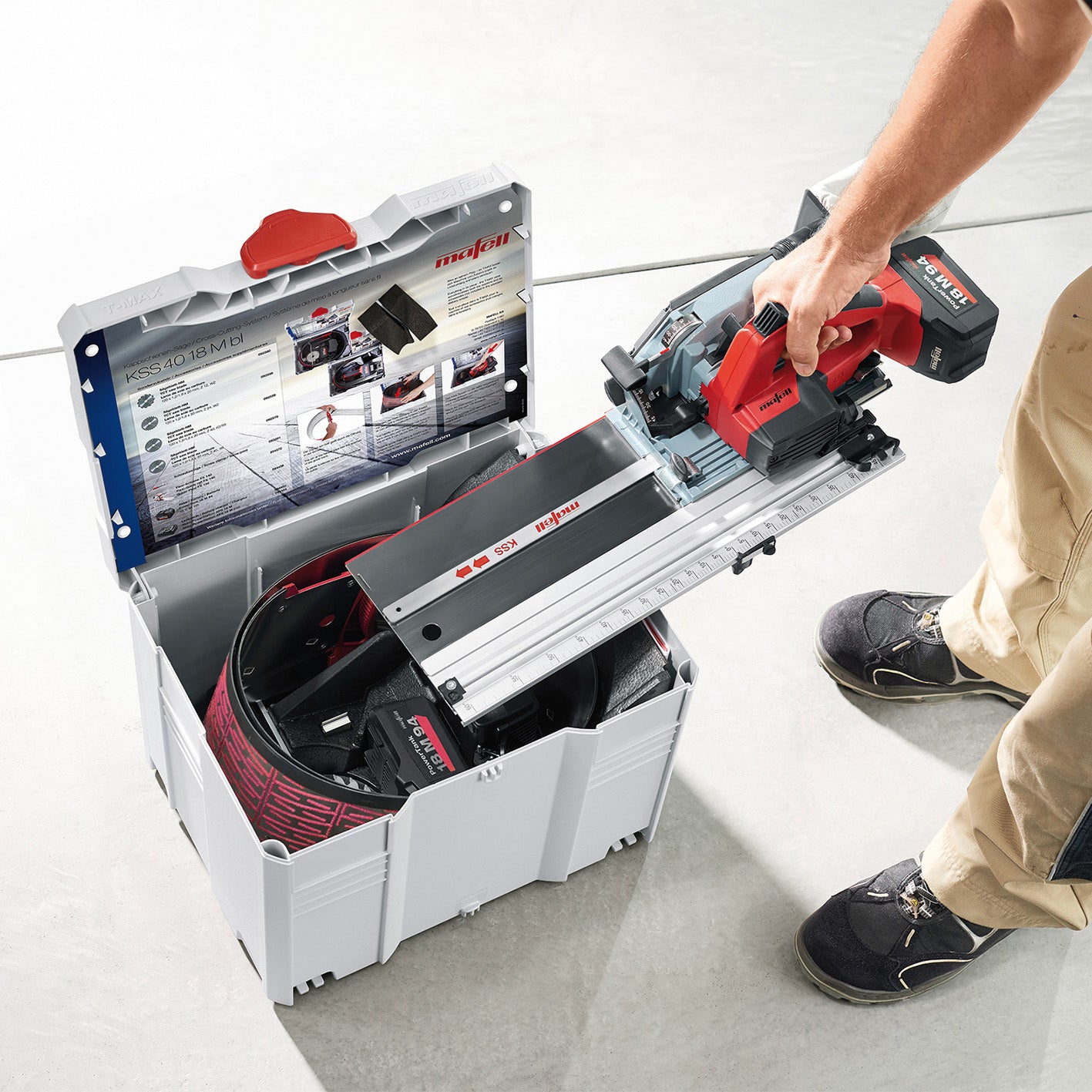

- Transport and storage box T-MAX
Technical data
| Cutting depth at 0° with guide track | 0 – 40 mm |
| Cutting depth 45° with track | 0 – 27 mm |
| Cutting depth at 0 ° without guide track | 0 – 42 mm |
| Tilt range | 0 – 45 ° |
| Cutting length | 300 mm |
| Angle cuts | +45 – -60 ° |
| Nominal No. of strokes – no load | 6700 1/min |
| Weight with guide rail | 3,6 kg |
| Battery | 18 V, 99 Wh, LiHD |
Description
We have not reinvented cross-cutting – but we have made it easier and more portable. And with the new KSS 40 18M bl, we have even added a battery: one that delivers what it promises - innovative battery technology for maximum performance.
When it comes to internal finishing work, there is no better helper than the KSS 40 18M bl, whatever the task in hand: be it for floors, walls, doors, furniture, ceilings or roof battens – to make cross or rip cuts, rail-guided cuts, miter or compound miter cuts at angles up to 45°, or even plunge cuts.
Backed by 25 years of experience, it takes cross-cutting system technology to the next development level with the addition of state-of-the-art battery technology.
Applications

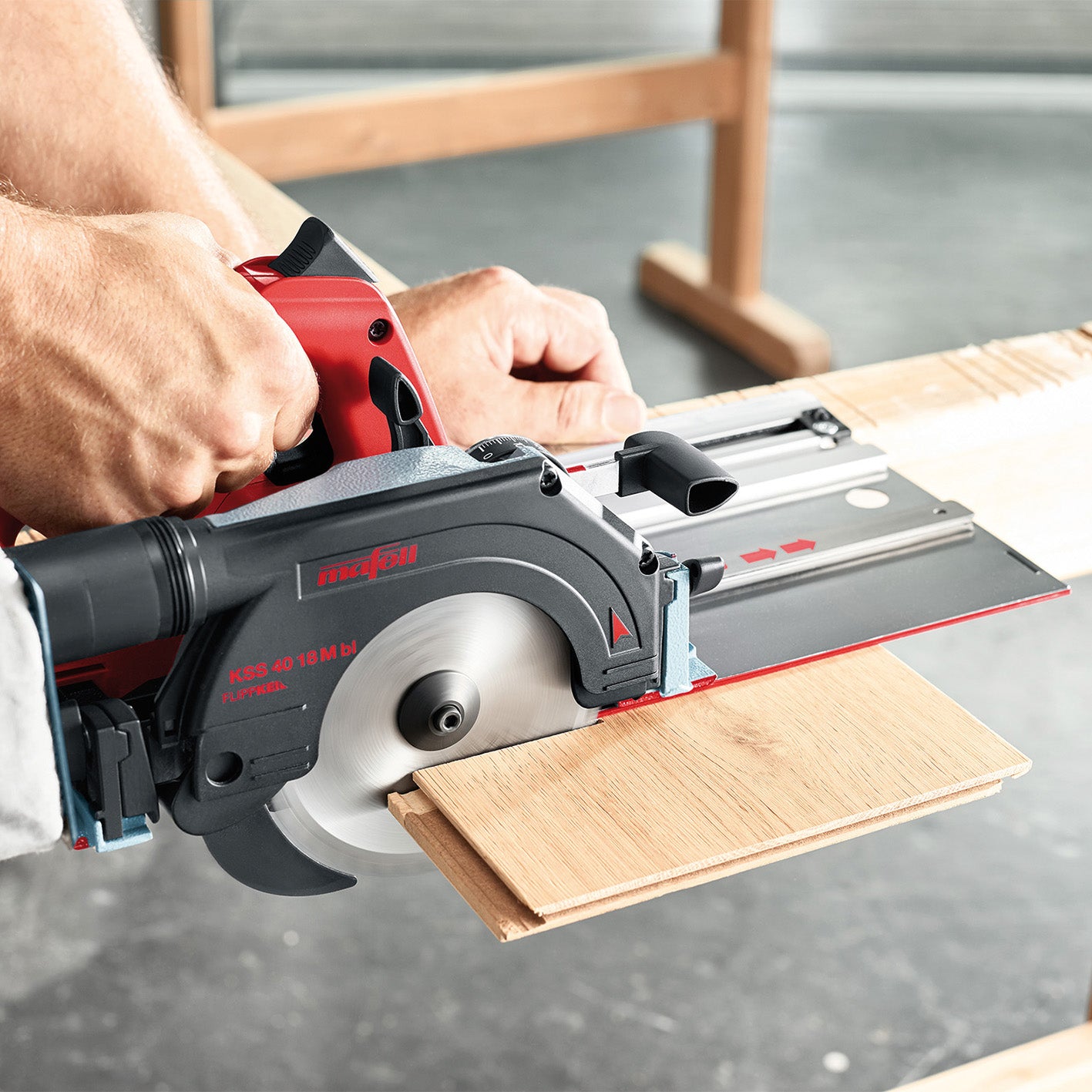

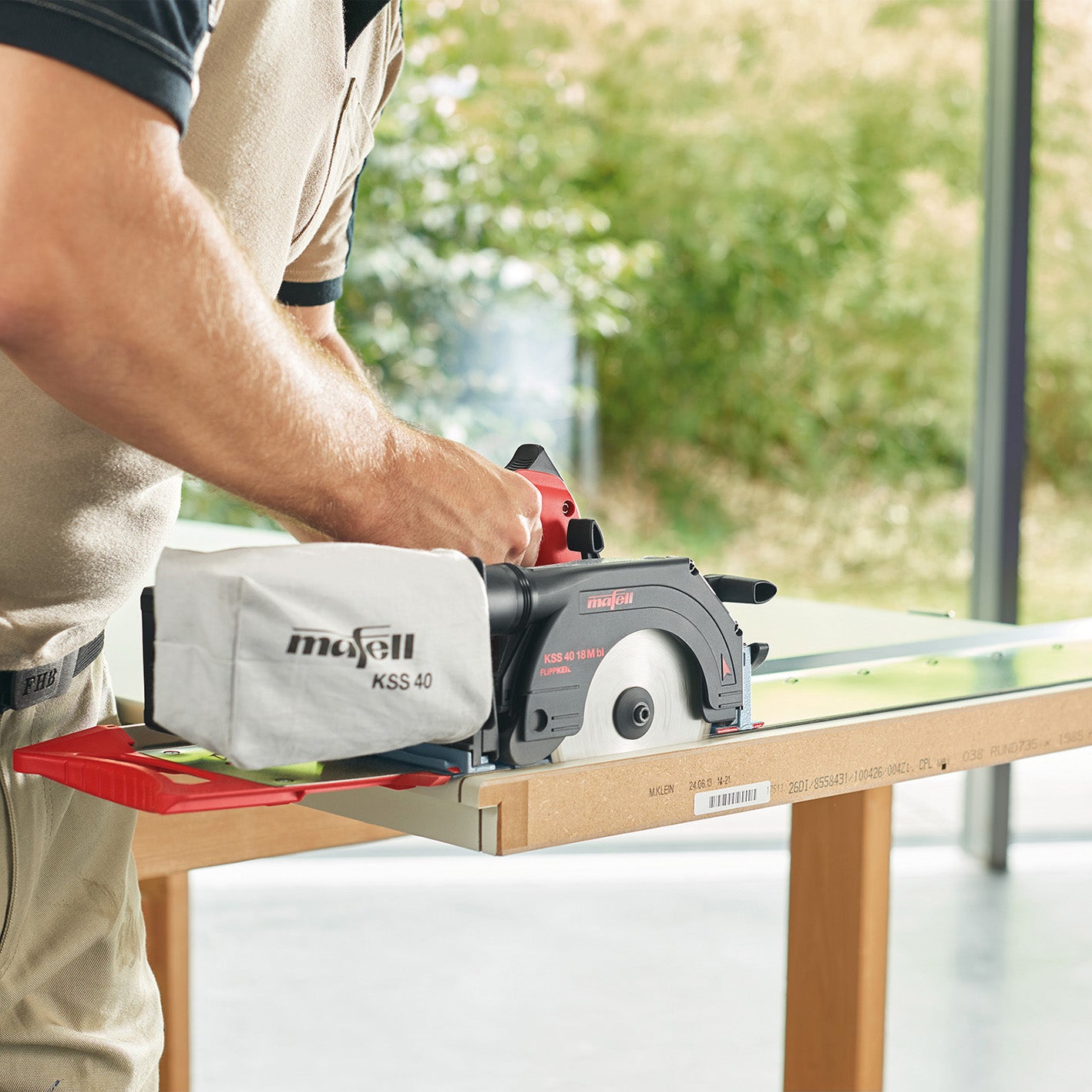

Cross cuts with guide
Rip cuts and cross-cutting

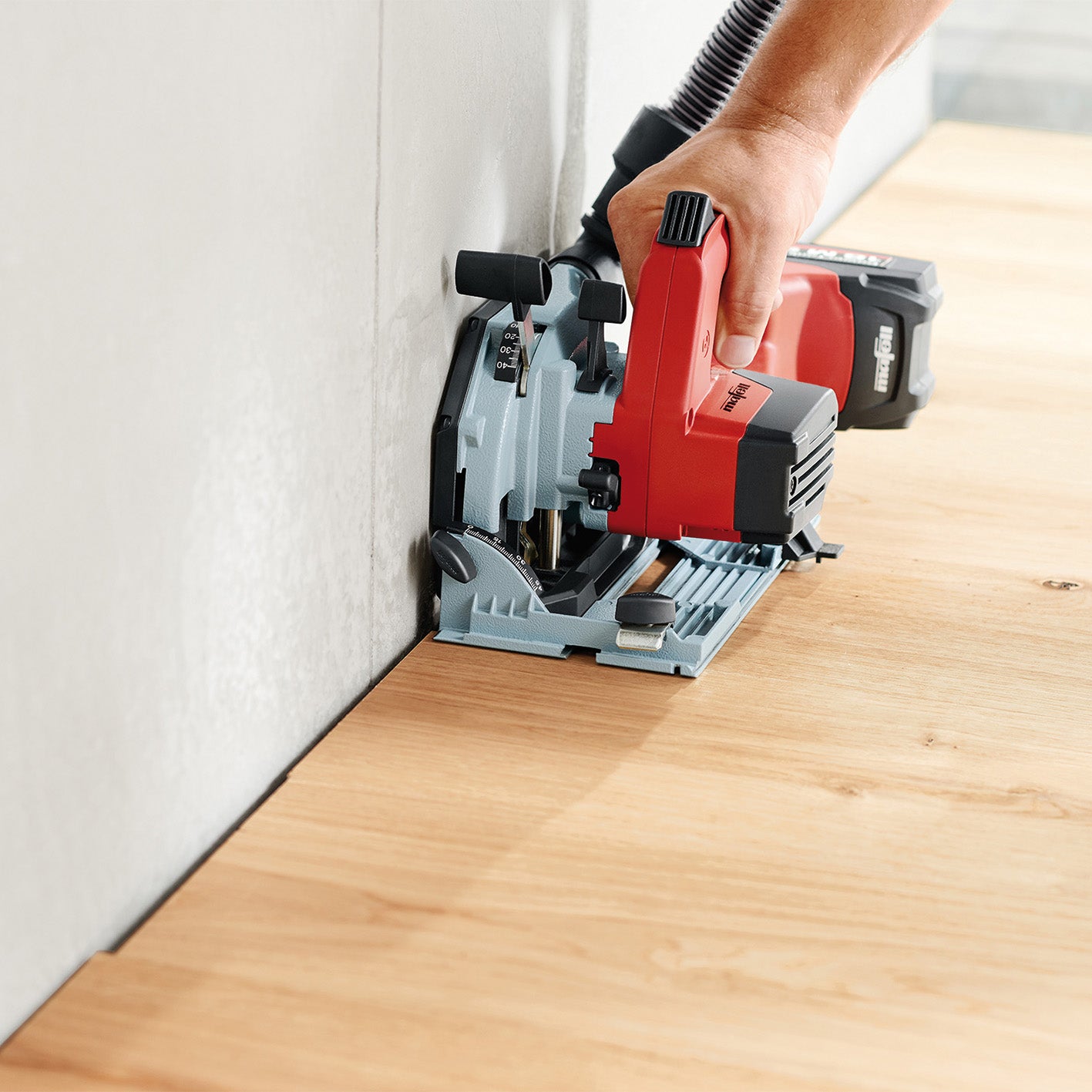

Plunge cuts, recesses and cutting shadow gaps from 13 mm (1/2 in.)
Compatible materials include board materials, doors, worktops, parquet and laminate flooring, solid wood
Advantages
The new, compact brushless motor is extremely durable, efficient and maintenance-free.
The quick-release catch enables you to detach the machine from the rail in a single, quick action. The saw can then be used as a separate portable circular unit with all the functionality of the MAFELL K series.
With a cutting depth of 40 mm on the rail, virtually all sawing tasks arising during on-site assembly work can be executed – and in keeping with immaculate MAFELL quality standards to boot.
One stop is fixed while the other can be adjusted exactly thanks to the large scale markings – for precise angle cuts.
