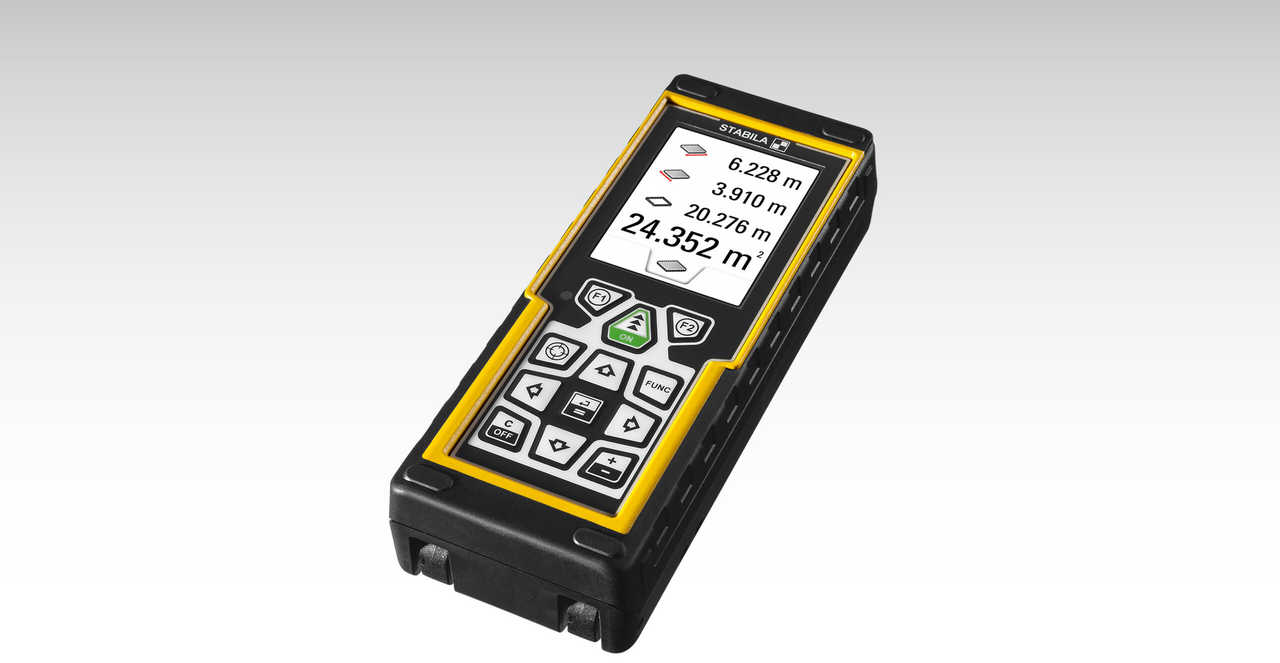

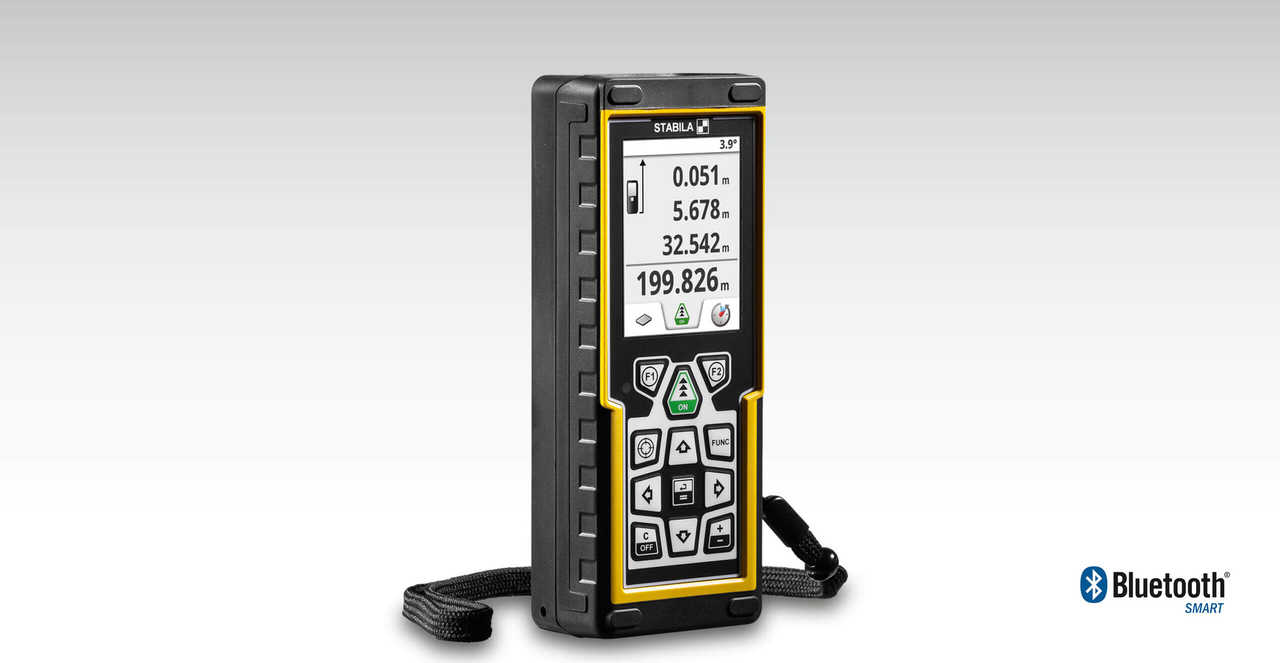

Stabila LD 520 laser distance measurer
Digital target locator – the smart way to measure
Description
Visually locate your target outdoors up to 200 metres, using the built-in camera with 4x zoom function, even when the laser point is not visible. Transfer the data via the integrated Bluetooth® Smart 4.0 technology to your smartphone or tablet. This tool has a host of 18 applications for tradesmen and professionals alike. It is the fast and efficient way to measure and calculate material or labour costs. This tool is not an outlay but a worthwhile investment that makes light work of all of your measuring tasks.
Product advantages

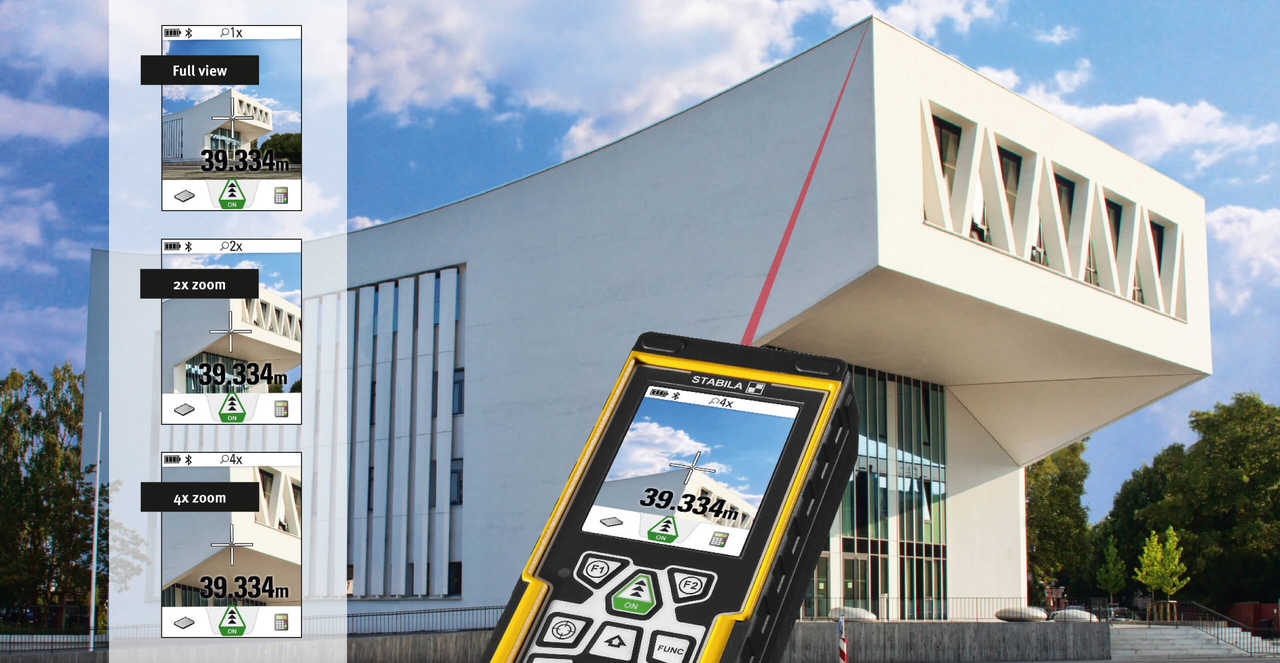

- Integrated digital target locator with 4x zoom for accurate locating over large distances, even in strong sunlight.

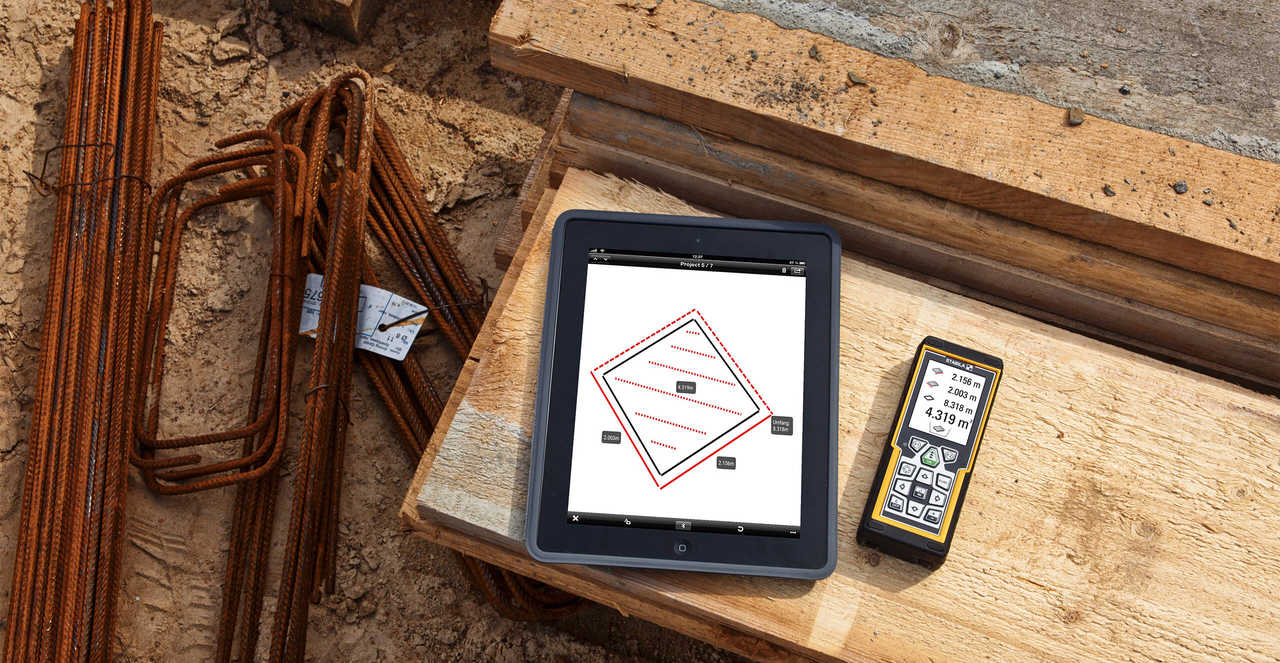

- Bluetooth® Smart 4.0 technology for the wireless transfer of measurement data from the laser to a smartphone or tablet.
- 360° inclination sensor for flexible measurement from any position (displays ± 180°).
- Built-in calculator.

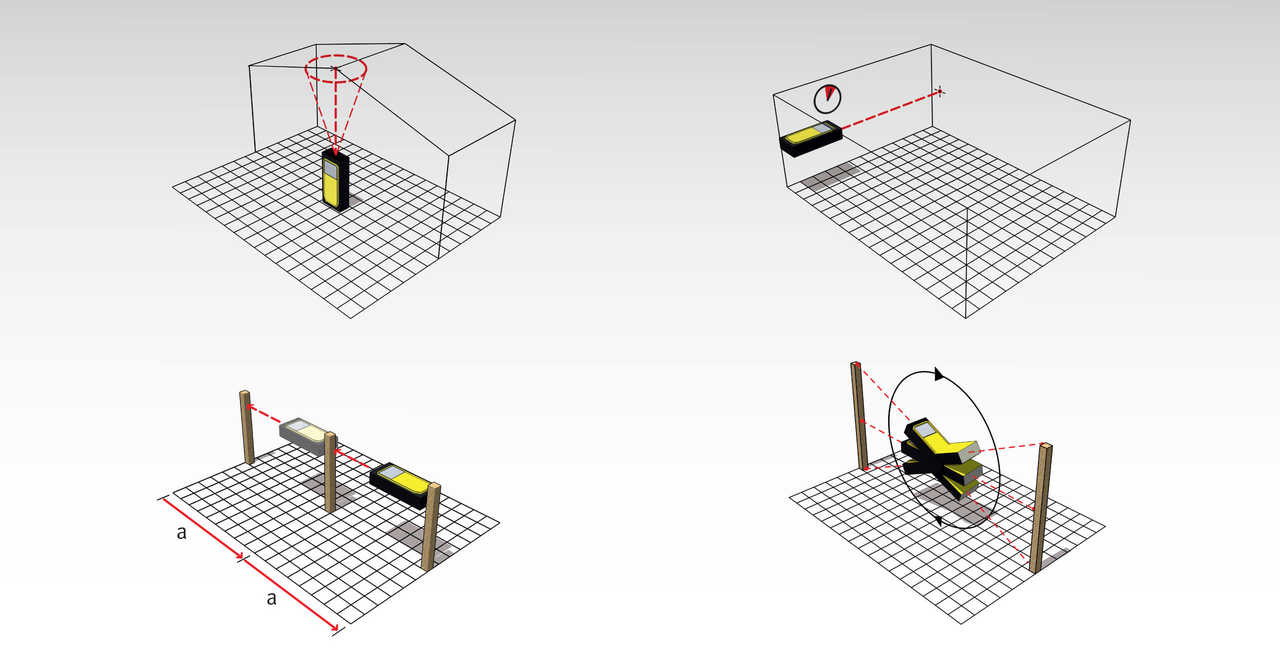

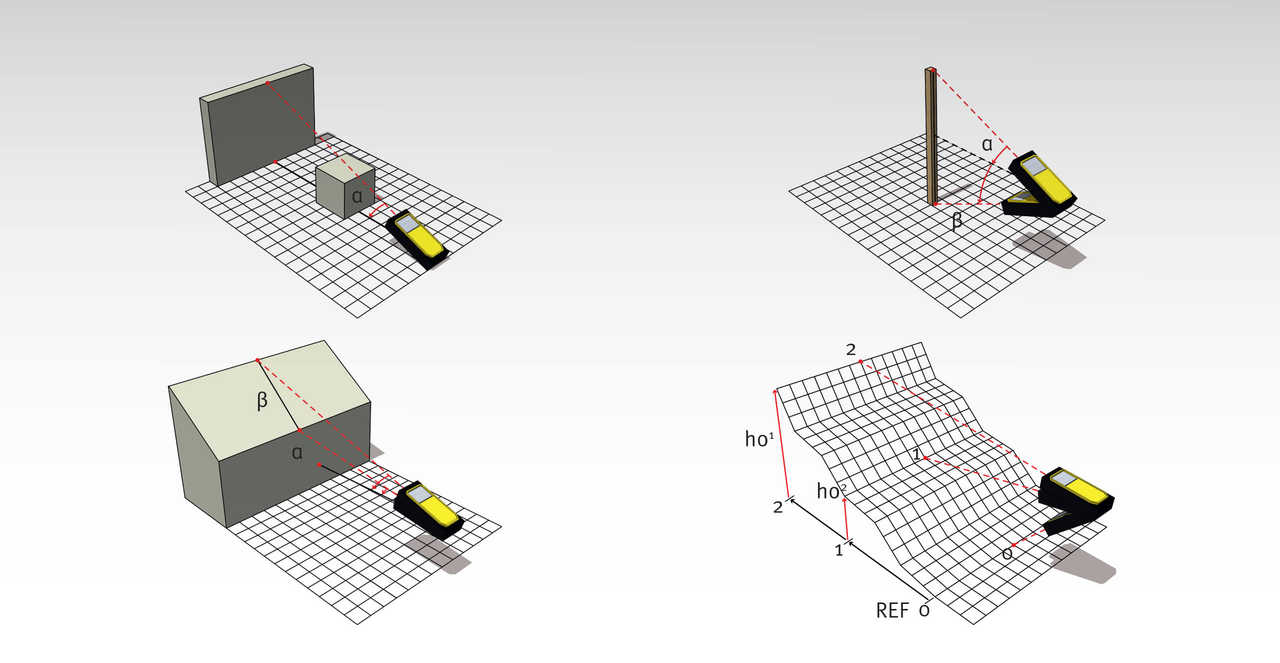

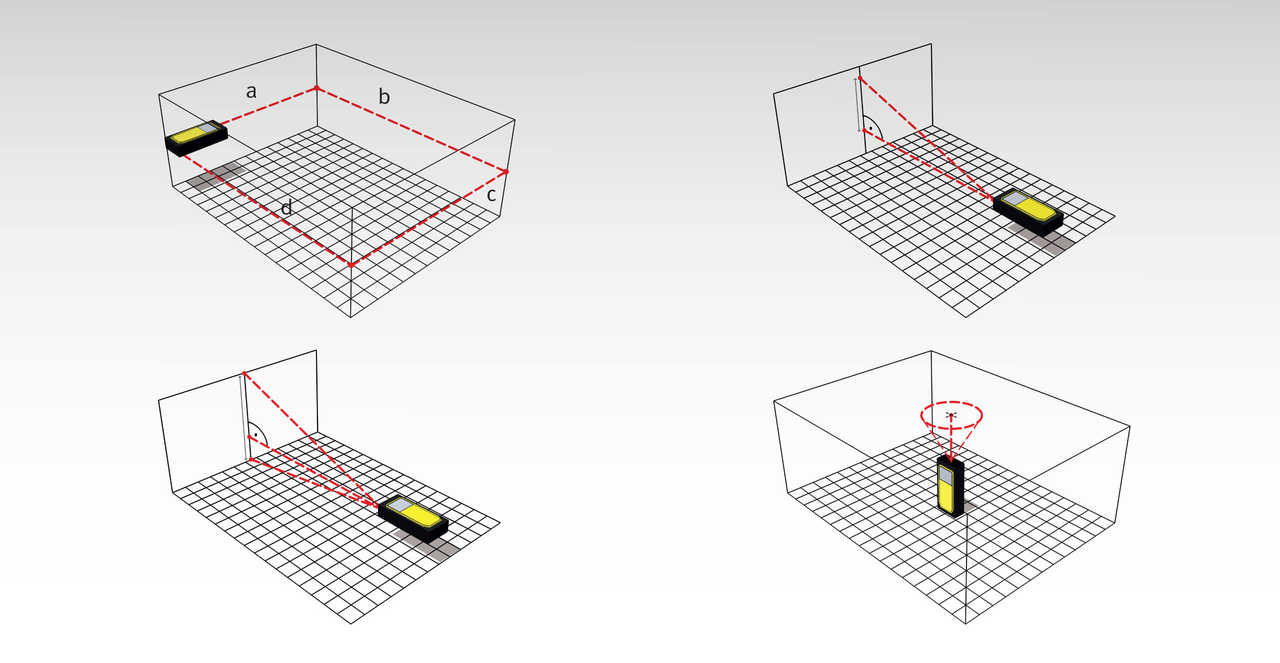

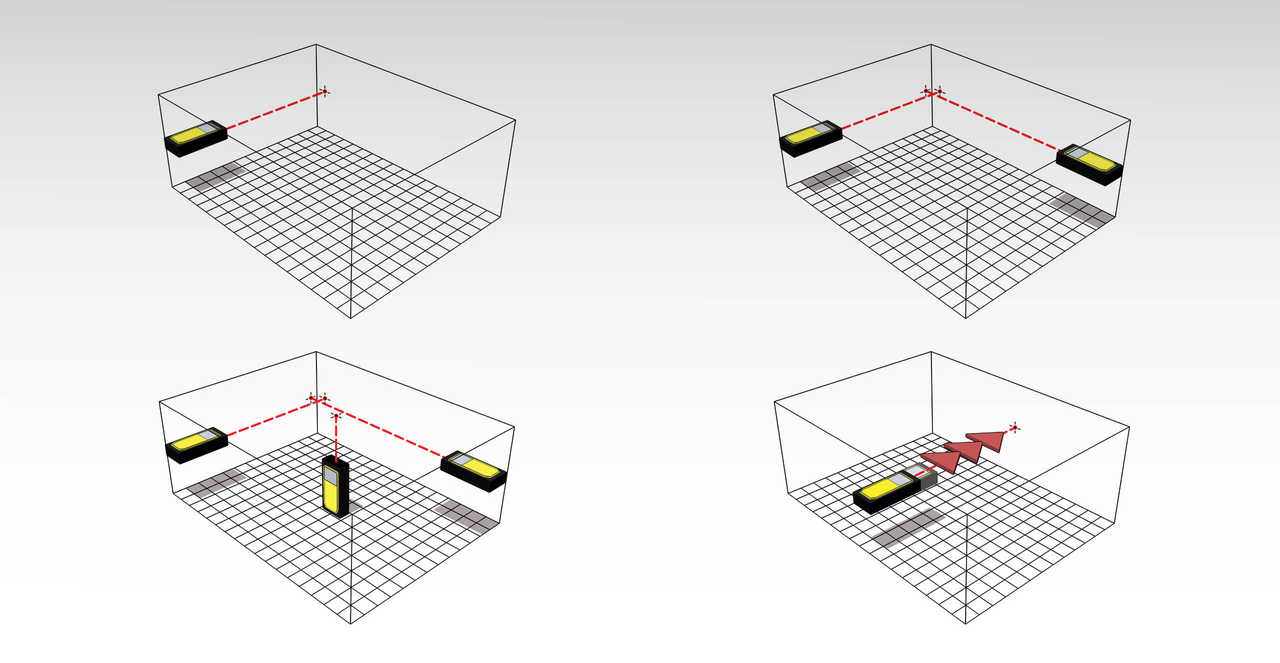

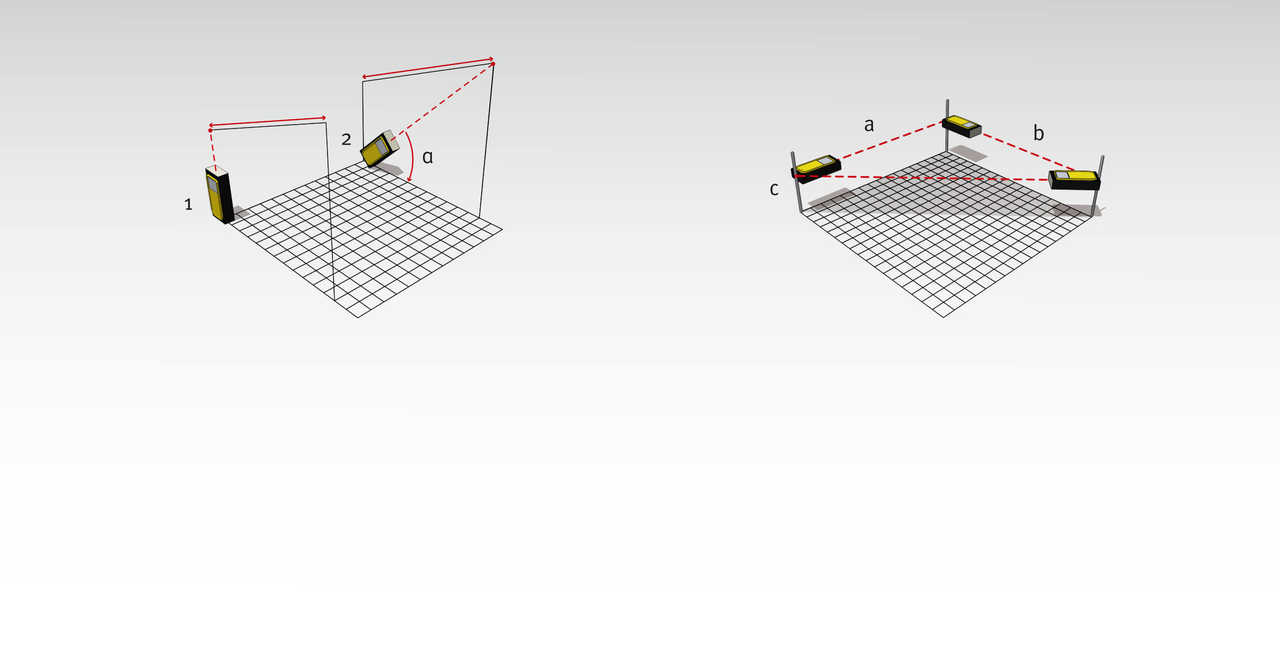

- Comprehensive function package – 18 functions (including MIN and MAX tracking, indirect distances and heights, elevation profiles).
- ISO-certified distance measurer – the measuring range (0.05–200 m) and accuracy specifications (± 1.0 mm) fulfil international standard ISO 16331-1.
- Display lighting makes it very easy to read.
- Impact-resistant housing with shock-absorbent STABILA soft grip casing.
- Protection class IP 54: protection against dust deposits inside and against spray from all directions.
- 1/4“ thread for fixing on a tripod – makes accurate locating possible.
- Includes a belt pouch and wrist strap.
Application examples

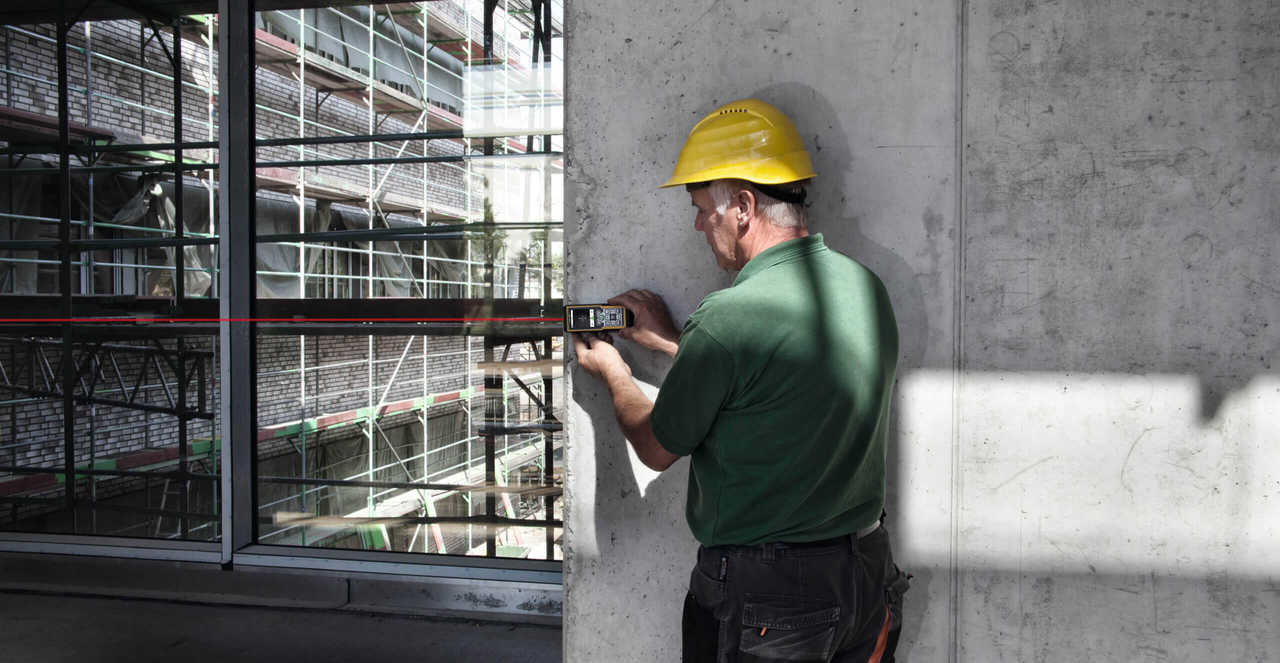

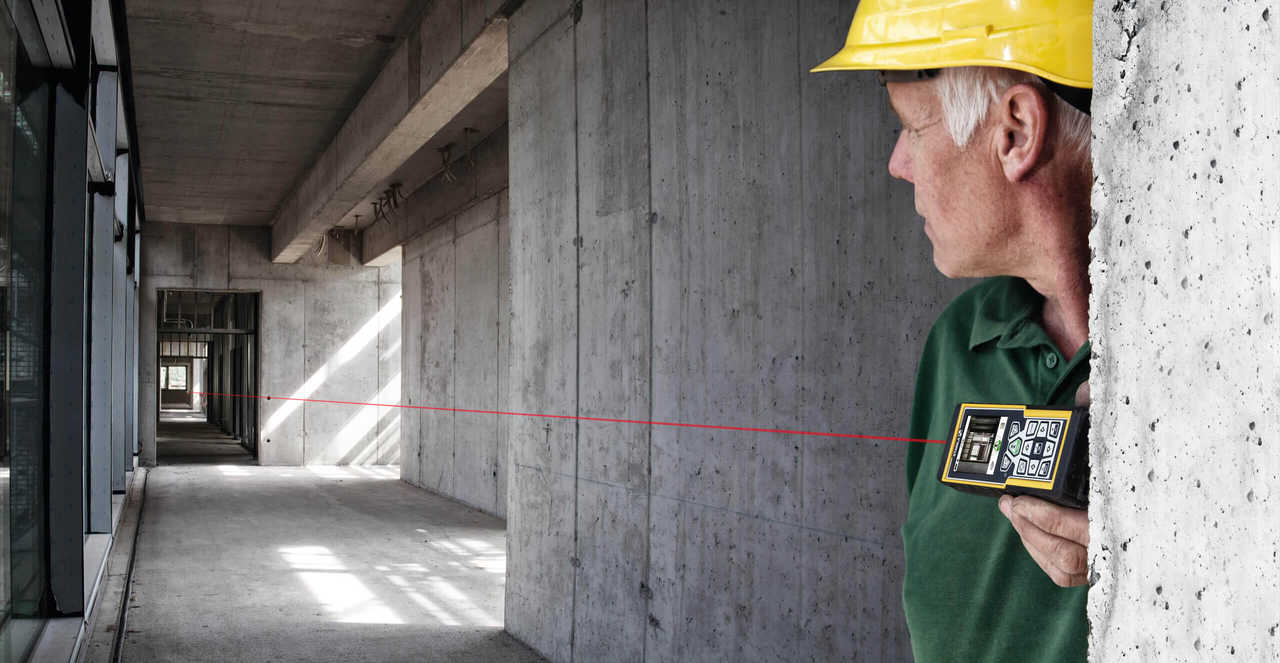

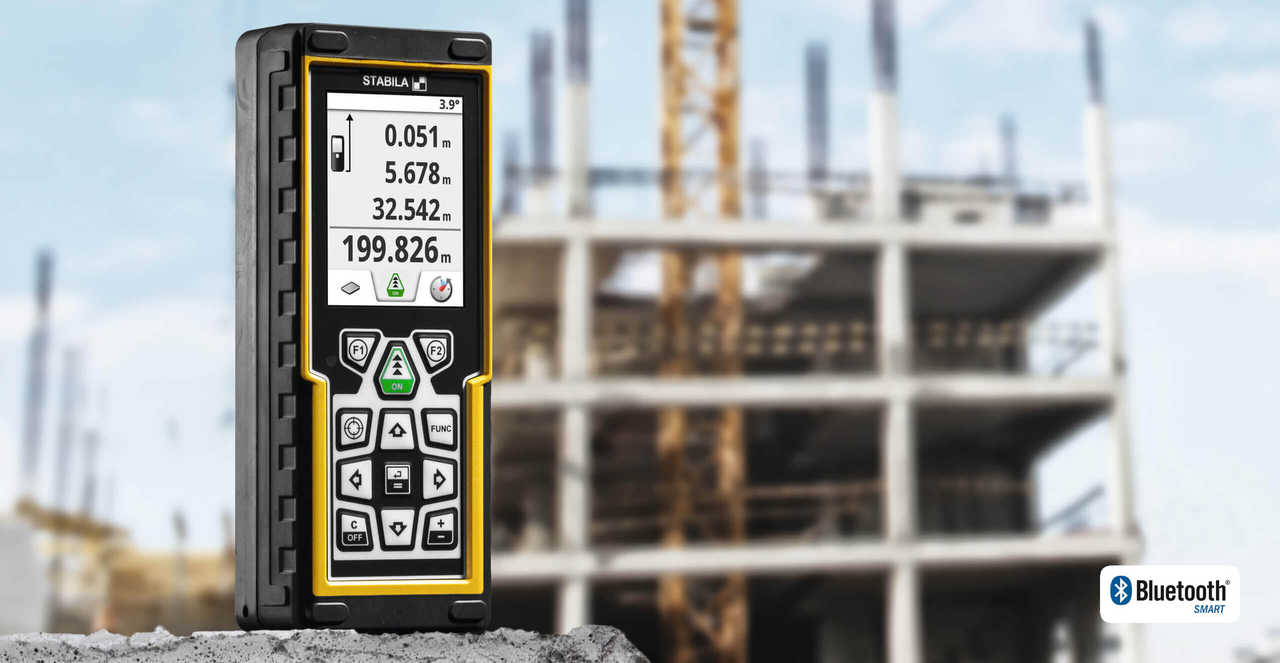

- For everyone working indoors and/or outdoors who has to locate targets over large distances.
Technical data
Laser class 2
Output < 1 mW
Laser wavelength 635 nm
Accuracy +/- 1 mm
Min. measuring range 0.05 m
Max. measuring range 200 m
Operating life (number of measurements) 5000
Storage option Yes
With data transfer Yes
Inclination sensor +/- 180°
Digital target locator Yes
Tripod connection 1/4"
Functions 18
Protection class IP 54
