RAM Quick-Grip Waterproof Wireless Charging Suction Cup Mount

RAM Mounts

1.199 SEK

FEATURES

  • Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 10W maximum output

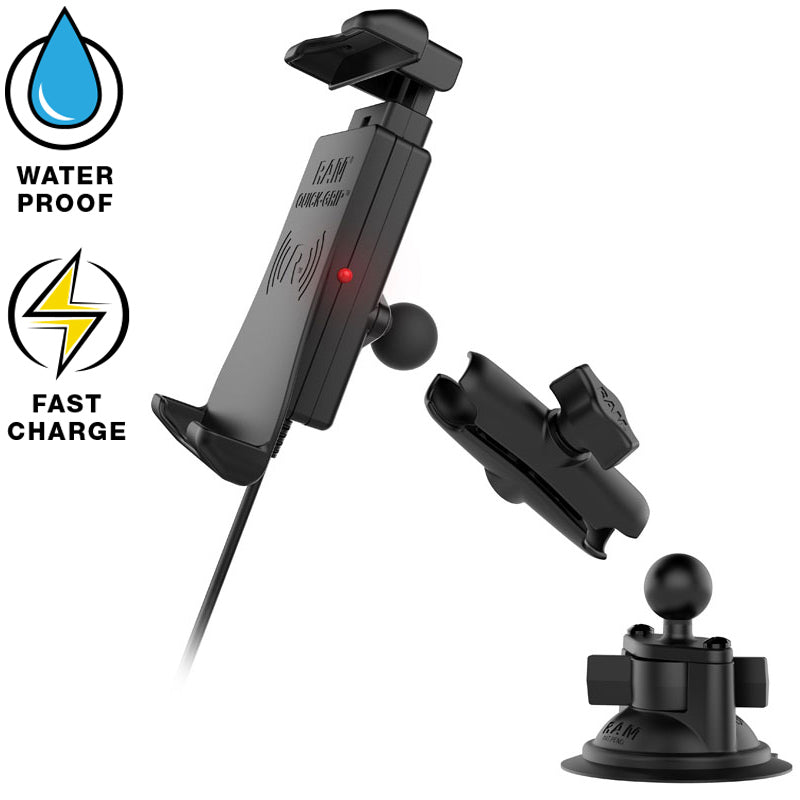

  • Kit for vehicles includes wireless charging cradle, B size diamond ball base, medium double socket arm, and RAM® Twist-Lock™ suction cup
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

OVERVIEW

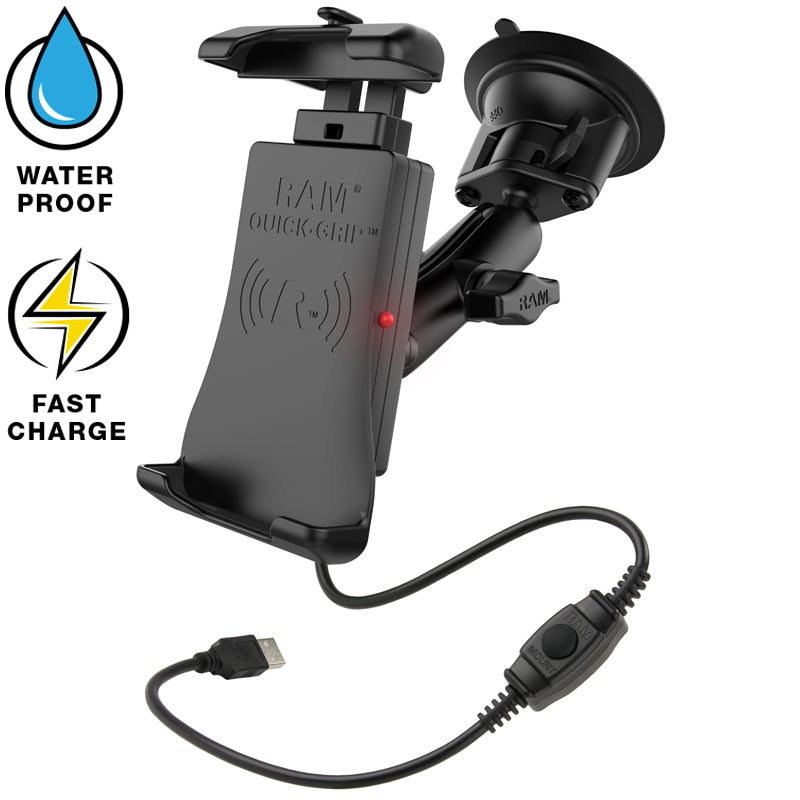

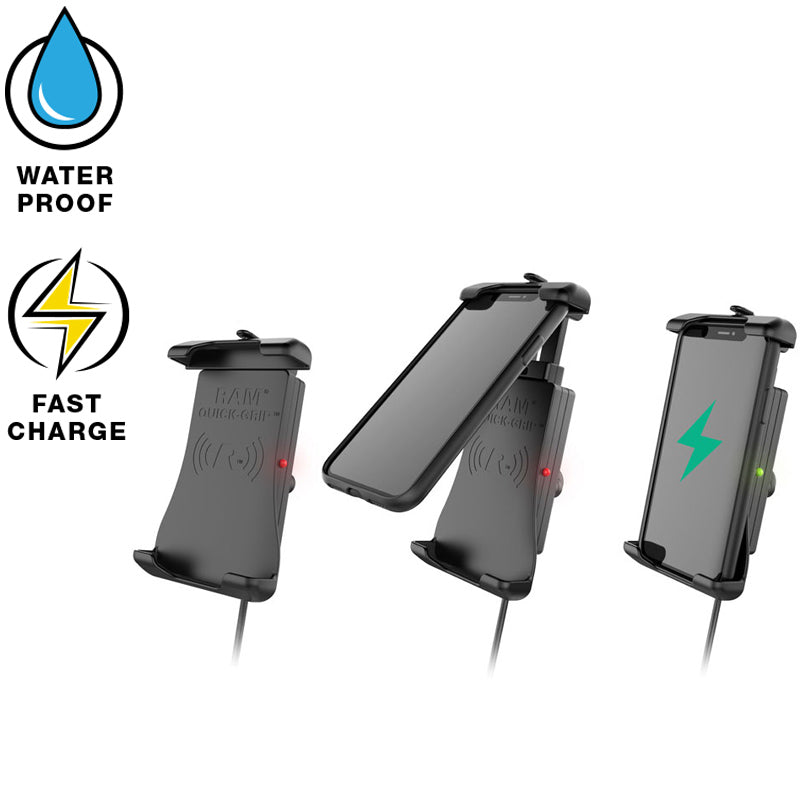

The RAM® Quick-Grip Wireless is a patented, universal waterproof wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi compatible wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip Wireless suction cup kit includes a B size diamond base featuring a 1” rubber ball, medium length double socket arm, and RAM® Twist-Lock suction cup. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

HARDWARE INCLUDED

(1) Safety Tether
(1) Silicon sleeve for USB waterproof connection
(1) 1.2 Meter USB Extension Cable
(4) Small zip ties
(2) Large zip ties

HOLDER DIMENSIONS

Height Range: 5.625" - 6.625" (14,3 - 16,8 cm)
Max Width: 3.125" (7,9 cm)
Max Depth: .7" (1,78 cm)

SUCTION SIZE

3.3" (8,38 cm) Diameter

SOCKET-TO-SOCKET LENGTH

3" (7,62 cm)

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

2 lbs

MATERIALS

Marine-grade aluminum
High strength composite
Stainless steel

PACKAGING TYPE

Retail Box

POWER SPECIFICATIONS

Input Power:5V-2A; 9V-1.67A
Output: 5W / 7.5W / 10W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies

CONNECTOR TYPE

USB Type-A Male

INPUT CABLE LENGTH

20" with optional 1.2M extension cable

COMPLIANCE

Over current protection, short circuit protection and over temperature protection

CERTIFICATIONS

FCC, IC, CE, e-Mark, WEEE, RCM, and RoHS Compliant

WEIGHT

1.65 lbs.

WARRANTY STATUS

1 year warranty

ADDITIONAL INFORMATION

  • Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.

Instruktioner:

Trådlös laddning

Montering av sugkopp

COMPATIBLE DEVICES

Art.nr: RAM-B-166-UN14W
