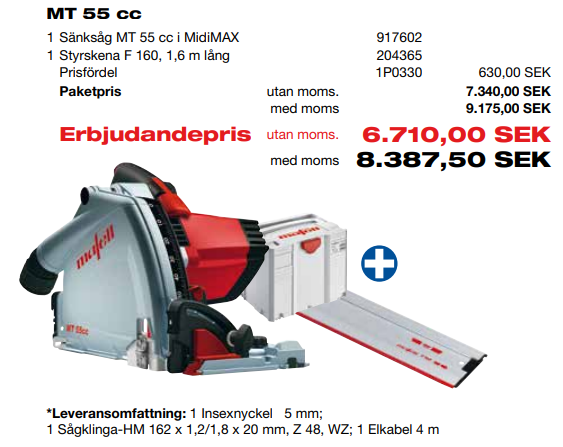

Mafell Sänksåg MT 55 cc MidiMAX 230V i T-MAX Kampanj med 1,6m styrskena

Mafell Sänksåg MT 55 cc MidiMAX 230V i T-MAX Kampanj med 1,6m styrskena
Mafell Sänksåg MT 55 cc MidiMAX 230V i T-MAX Kampanj med 1,6m styrskena Mafell Sänksåg MT 55 cc MidiMAX 230V i T-MAX Kampanj med 1,6m styrskena Mafell Sänksåg MT 55 cc MidiMAX 230V i T-MAX Kampanj med 1,6m styrskena Mafell Sänksåg MT 55 cc MidiMAX 230V i T-MAX Kampanj med 1,6m styrskena Mafell Sänksåg MT 55 cc MidiMAX 230V i T-MAX Kampanj med 1,6m styrskena Mafell Sänksåg MT 55 cc MidiMAX 230V i T-MAX Kampanj med 1,6m styrskena

Mafell

6.710 SEK

Mafell Sänksåg MT 55 cc MidiMAX 230V i T-MAX Kampanj med styrskena

Eldriven Sänksåg MT 55 cc i MaxiMAX i T-MAX (systainer)

Order number: 917602-K


Delivery specification

1 Allen key 5 mm; Ref. No. 093034
1 TCT sawblade 162 x 1.2/1.8 x 20 mm, 48 alternating teeth, for universal use with board materials; Ref. no. 092584
1 Mains cable 4 m (13.1 ft); Ref. No. 087323
Transport and storage box T-MAX
1  Styrskena F 160, 1,6 m lång 204635


    Technical data

    Cutting depth 0 - 57 mm
    Cutting depth at 45° 0 - 40,5 mm
    Tilt range -1 - +48 °
    Nominal No. of strokes – no load 3600-6250 1/min
    Nominal power input 1400 W
    Universal motor 230 V / 50 Hz
    Weight 4,5 kg



    Description

    The idea of developing a new plunge-cut saw is not new in itself. The novel aspect of this development, however, was the origination of a unique precision product from a set of especially designed machine components.
    The plunge-cut saw MT 55 cc is a jack of all trades. It can execute plunge, parting, bevel and angled cuts with supreme precision and without any tearing.
    The scoring function is quickly activated in a single movement. The MT 55 cc then cuts visible edges as cleanly as a stationary machine, even if the splinter guard is worn.
    Continuously variable speed for a variety of materials and sawblades.
    The cutting depth range has now been extended to 57 mm (2 1/4 in.). Thanks to the innovative tilting system, the options afforded for bevel cuts are practically unlimited as well.

    Applications

    Cross-cutting and rip cuts
    Bevel cuts -1 to +48°
    Plunge cuts
    Compatible materials include solid wood, cement fiberboard, melamine resin panels (Trespa), OSB, gypsum fiberboard, plastics, façade boards and various board materials



    Advantages

    Facility for extremely fine adjustment of the cutting depth setting, e.g. when working with a resharpened blade or with Fermacell.
    The closed saw blade cover and the slide bar at the saw-cut ensure a very low dust formation.
    The MT 55 cc is equipped with a new CUprex-Compact motor for significantly elevated speeds and ample power in reserve.
    The cutting depth can be set with millimeter precision. With or without a rail – simply turn the pointer to show the exact cutting depth.
    For bevel cuts, the angle setting is fixed in two locations with half a turn of a single locking screw.
