Mafell Kapsågsystem KSS 40 18M bl i T-MAX Kampanj


12.065 SEK
Available for pre-order

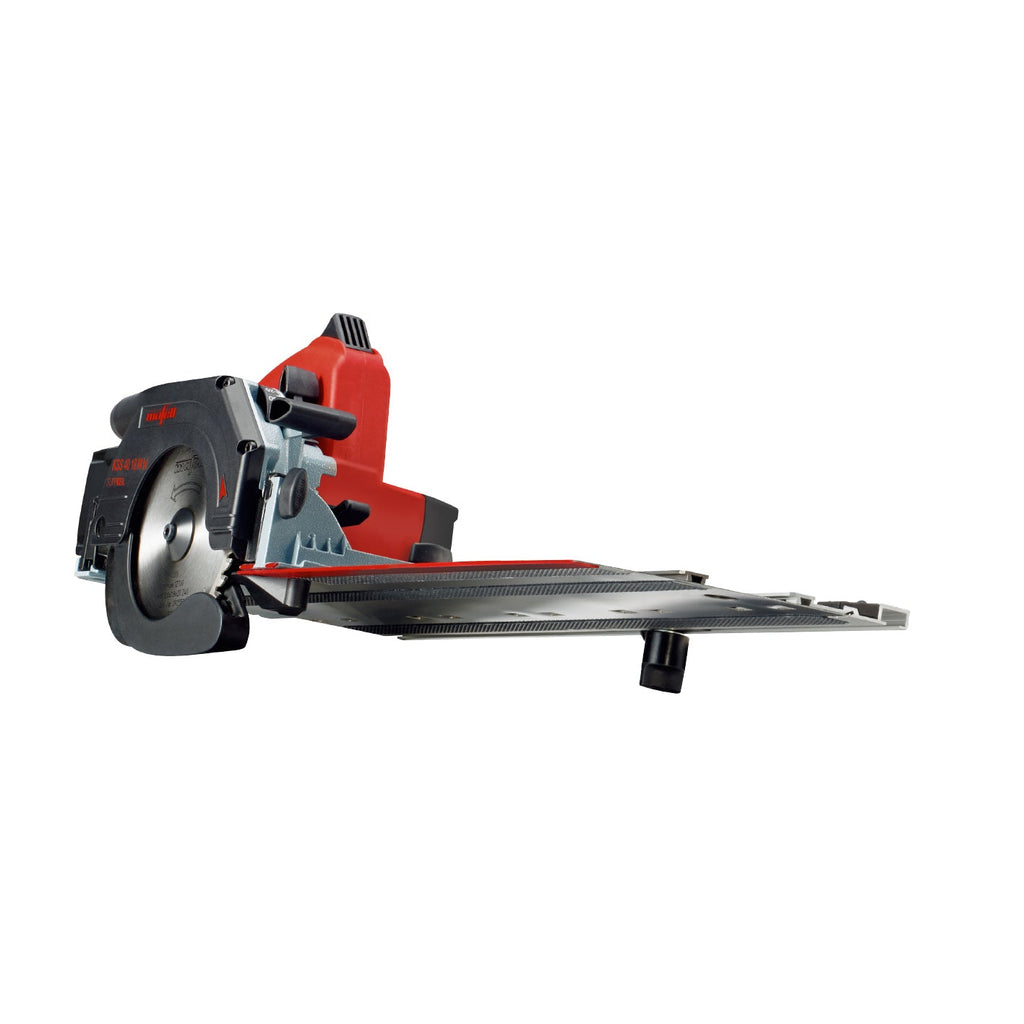

Mafell Kapsågsystem KSS 40 18M bl i T-MAX

Cordless Cross-Cutting System KSS 40 18M bl in the T-MAX

Batterdriven Kapsågsystem KSS 40 18M bl i T-MAX med laddare och 2st 18 M 99 batterier i T-MAX (systainer)

Order number: 91B301

Delivery specification

  • 1 TCT saw blade 120 x 1.2/1.8 x 20 mm (4 3/4 in.)/ AT, 24 teeth; Ref. No. 092558
  • 1 TCT saw blade 120 x 1.2/1.8 x 20 mm (4 3/4 in.)/ AT, 40 teeth; Ref. No. 092559
  • 1 Guide track S, max. cutting length 292 mm (15 3/4 in.); Ref. No. 208169
  • 1 Parallel guide fence; Ref. No. 203180
  • 1 Hose connector; Ref. No. 203782
  • 1 Dust bag; Ref. No. 206787
  • 1 Allen key 4 mm; Ref. No. 093074
  • 1 Flexi-Guide FX 140, 1.4 m (4.6 ft) with splinter guard; Ref. No. 204372
  • 1 Battery-PowerStation APS 18 M; Ref. No. 094492
  • 2 Battery PowerTanks 18 M 99, 18V, 99 Wh (LiHD); Ref. No. 094503
  • 2 Clamping claws; Ref. No. 203773

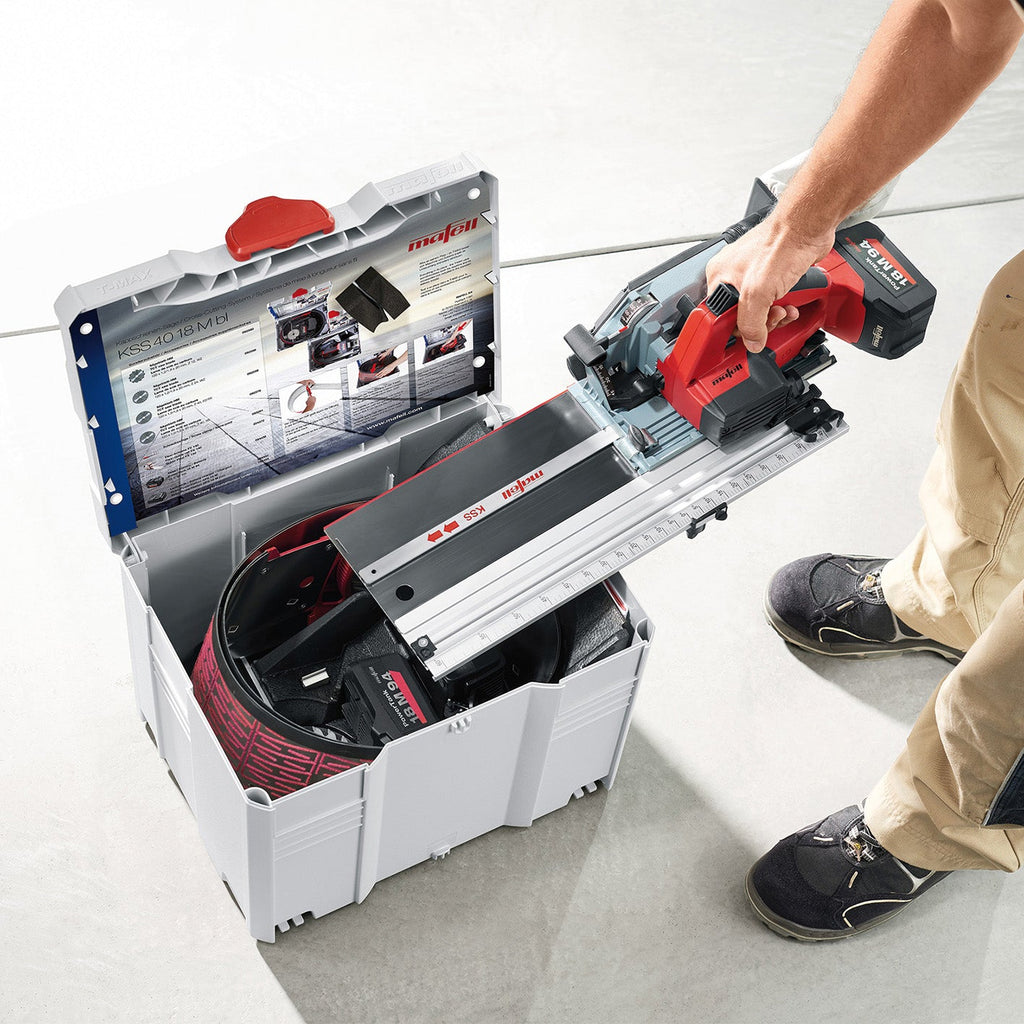

  • Transport and storage box T-MAX

Technical data

Cutting depth at 0° with guide track 0 – 40 mm
Cutting depth 45° with track 0 – 27 mm
Cutting depth at 0 ° without guide track 0 – 42 mm
Tilt range 0 – 45 °
Cutting length 300 mm
Angle cuts +45 – -60 °
Nominal No. of strokes – no load 6700 1/min
Weight with guide rail 3,6 kg
Battery 18 V, 99 Wh, LiHD


We have not reinvented cross-cutting – but we have made it easier and more portable. And with the new KSS 40 18M bl, we have even added a battery: one that delivers what it promises - innovative battery technology for maximum performance.

When it comes to internal finishing work, there is no better helper than the KSS 40 18M bl, whatever the task in hand: be it for floors, walls, doors, furniture, ceilings or roof battens – to make cross or rip cuts, rail-guided cuts, miter or compound miter cuts at angles up to 45°, or even plunge cuts.

Backed by 25 years of experience, it takes cross-cutting system technology to the next development level with the addition of state-of-the-art battery technology.

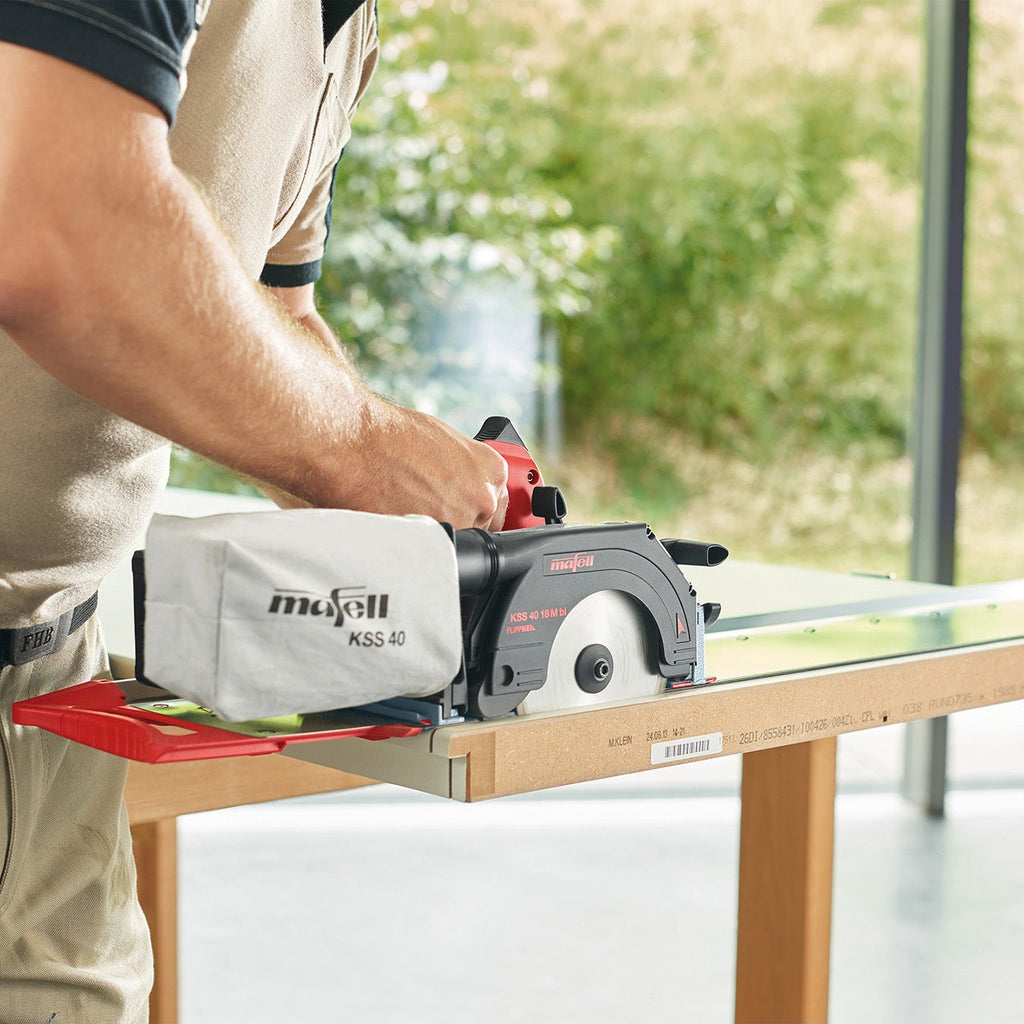

Cross cuts with guide

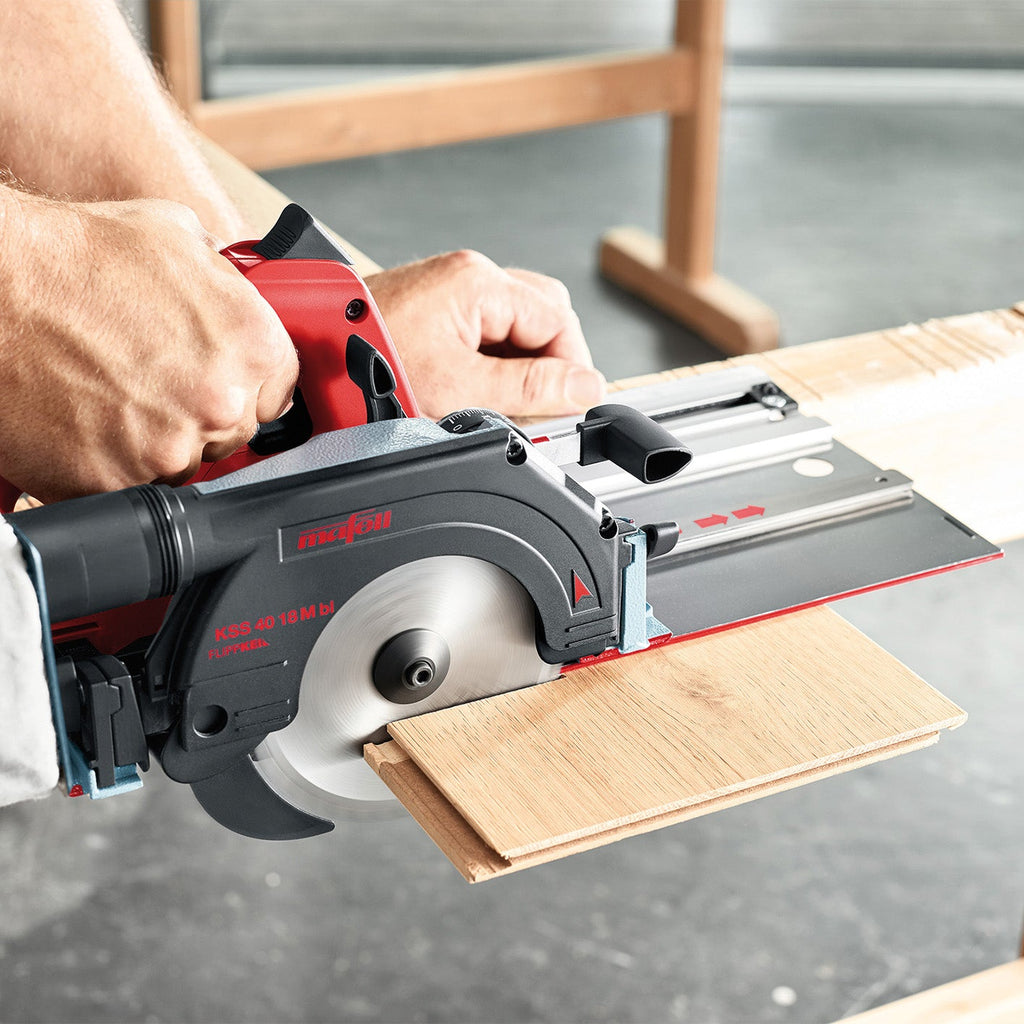

Rip cuts and cross-cutting

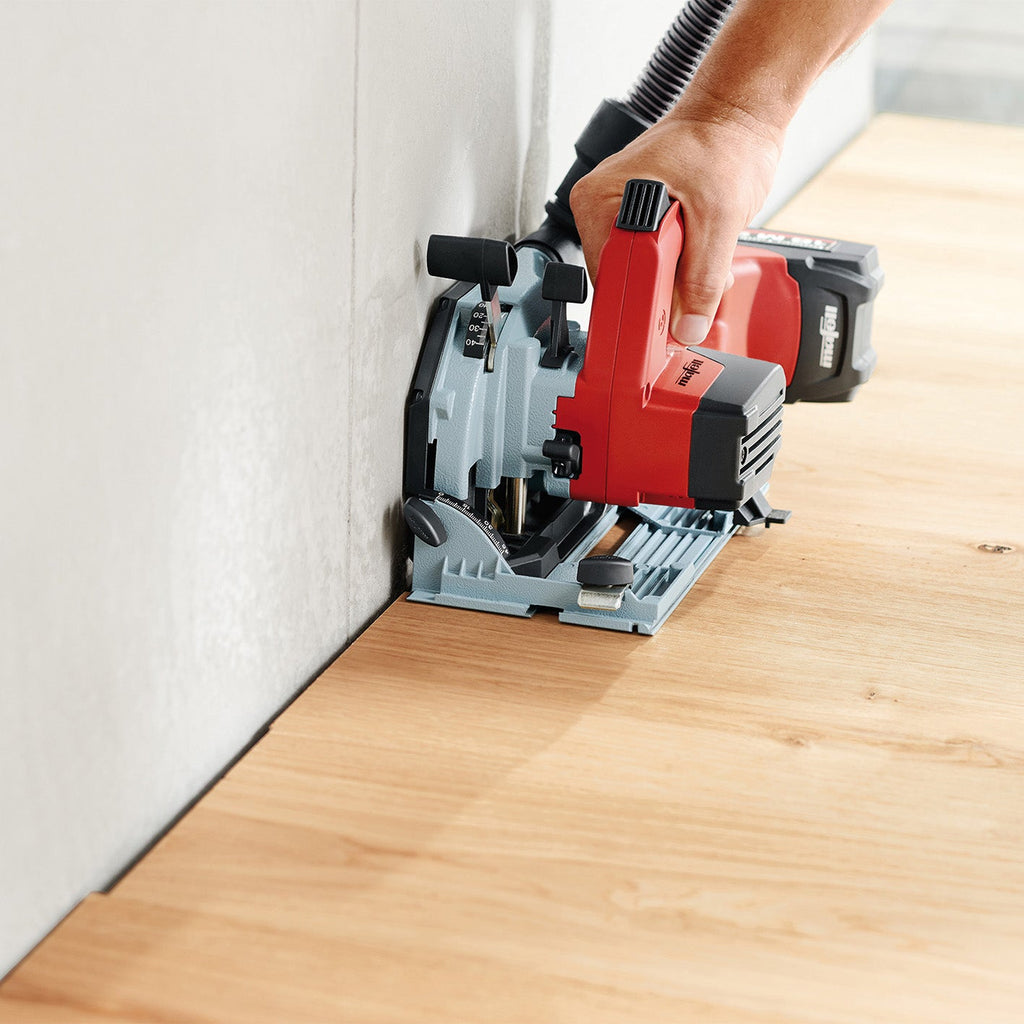

Plunge cuts, recesses and cutting shadow gaps from 13 mm (1/2 in.)
Compatible materials include board materials, doors, worktops, parquet and laminate flooring, solid wood



The new, compact brushless motor is extremely durable, efficient and maintenance-free.
The quick-release catch enables you to detach the machine from the rail in a single, quick action. The saw can then be used as a separate portable circular unit with all the functionality of the MAFELL K series.
With a cutting depth of 40 mm on the rail, virtually all sawing tasks arising during on-site assembly work can be executed – and in keeping with immaculate MAFELL quality standards to boot.
One stop is fixed while the other can be adjusted exactly thanks to the large scale markings – for precise angle cuts.
