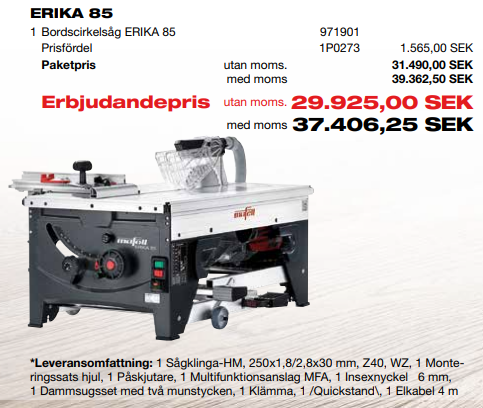

Mafell Bordcirkelsåg Erika 85 Kampanj


29.925 SEK 31.490 SEK
Available for pre-order

Mafell Bordcirkelsåg Erika 85 Kampanj

Order number: 971901-K

Delivery specification

1 TCT saw blade 250 x 2.8 x 30 mm (9 13/16 in.), AT, 40 teeth; Ref. No. 092465
1 Extension kit with wheels; Ref. No. 202889
1 Push stick; Ref. No. 034901
1 Allen key 6 mm; Ref. No. 093081
1 Extraction set with 2 connectors; Ref. No. 093670
1 Clamping device; Ref. No. 038294
1 Fold-away support Quickstand
1 Mains cable 4 m (13.1 ft)
1 MFA multi-purpose fence with angle locking; Ref. No. 207910

Technical data

Cutting height - 1 – 85 mm
Cutting height at 45° - 1 –59 mm
Tilt range -3 - 48 °
Cutting length 430 mm
Table top dimensions 525 x 915 mm
Working height without stand 415 mm
Working height with stand 891 mm
Nominal No. of strokes – no load 2.050 – 4.300 1/min
Nominal power input 2.500 W
Extraction connection diameter 58 mm
Weight (with multi-purpose guide fence MFA) 40 kg
Cutting speed 26,8 – 56,3 m/s
Universal motor 230 V / 50 Hz


As the world's first pull-push saw, the ERIKA has become the epitome of mobile sawing since its introduction. After almost 40 years of experience, the current generation is now endowed with everything that users expect from a modern pull-push saw.
The built-in /Quickstand\ sets the ERIKA on 4 stable aluminium legs within seconds. Protective rubber stoppers on the feet also prevent slipping or knocking.
The unique suction channel concentrates the sawdust and extracts it to the rear. Thanks to this new development, your dust extractor is used even more effectively. The result: clean work on a clean construction site! Operation of the ERIKA leaves no questions unanswered. Clearly designed operating elements are all logically arranged on the front of the machine!
Thanks to the E-control electronic system and the corresponding MAFELL original saw blade, it is possible to process other materials in addition to wood, such as plastics or aluminium profiles.
Further advantages of the ERIKA 85: Extremely stable table profile, tilt range from -3° to 48° , lowerable riving knife and maximum cutting length of 430 mm (16 15/15 inch).


Cross and rip cuts
Circular saw bench functionality
Bevel cuts up to 48°
Compatible materials include solid wood, board materials, parquet and laminate flooring, aluminum profiles and plastics

AdvantagesNew type of suction channel revolutionises extraction - for less dust when working.
Lightest pull-push saw in its class – for quick and easy transportation.
Adjustable speed – for individual processing of wood, plastics or aluminum profiles.
With voltage loss switch for protection against uncontrolled reconnection after a power interruption.
The rear legs of the Erika are equipped with wheels for easy handling.
